29 Ledpro copyright

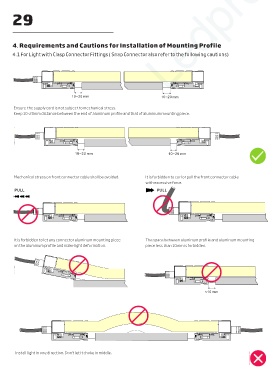

4. Requirements and Cautions for Installation of Mounting Profile
4.1 For Light with Clasp Connector Fittings ( Snap Connector also refer to the following cautions)
10~20 mm 10~20 mm
Ensure the supply cord is not subject to mechanical stress.
Keep 10-20mm distance between the end of aluminum profile and that of aluminum mounting piece.
10~20 mm 10~20 mm
Mechanical stress on front connector cable shall be avoided. It is forbidden to curl or pull the front connector cable
with excessive force.
PULL PULL
It is forbidden to let any connector aluminum mounting piece The space between aluminum profile and aluminum mounting
on the aluminum profile and make light deformation. piece less than 10mm is forbidden.
<10 mm
Install light in one direction. Don't let it choke in middle.
