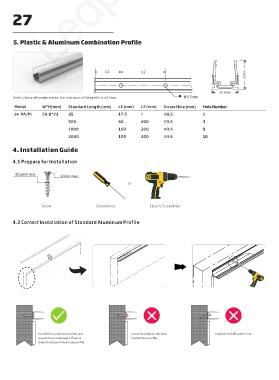

P. 27
27 Ledpro copyright
5. Plastic & Aluminum Combination Profile
L1 L2
23mm
20.8mm
Note: Unless otherwise stated, the tolerance of the profile is ±0.5mm. Φ3.5mm
Model W*H(mm) Standard Length (mm) L1 (mm) L2 (mm) Screw Hole (mm) Hole Number
S4-PA/PL 20.8*23 35 17.5 / Φ3.5 1
500 50 200 Φ3.5 3
1000 100 200 Φ3.5 5
2000 100 200 Φ3.5 10
4. Installation Guide
4.1 Prepare for Installation
or
Screw Screwdriver Electric Screwdriver
4.2 Correct Installation of Standard Aluminum Profile
Install the screw into position and Screw head above the base Gradient installing of screw.
ensure the screw head is flush or of aluminum profile.
lower the base of aluminum profile.
