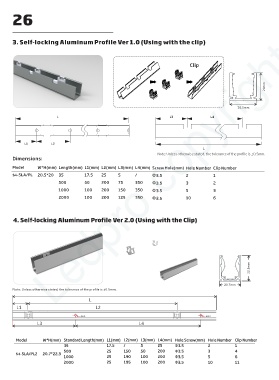

Page 26 - Series-4 Neon-Flex manual

26

3. Self-locking Aluminum Profile Ver 1.0 (Using with the clip)
Ledpro copyright

Clip

20mm

20.5mm

L L3 L4

L1 L2
L
Note: Unless otherwise stated, the tolerance of the profile is ±0.5mm.
Dimensions:
Model W*H(mm) Length(mm) L1(mm) L2(mm) L3(mm) L4(mm) Screw Hole(mm) Hole Number Clip Number
S4-SLA/PL 20.5*20 35 17.5 25 5 / Φ3.5 2 1
500 50 200 75 350 Φ3.5 3 2
1000 100 200 150 350 Φ3.5 5 3
2000 100 200 125 350 Φ3.5 10 6

4. Self-locking Aluminum Profile Ver 2.0 (Using with the Clip)

22.3mm

20.7mm
Note: Unless otherwise stated, the tolerance of the profile is ±0.5mm.
L
L1 L2

Φ3.5 Φ3.5
L3 L4

Model W*H(mm) Standard Length(mm) L1(mm) L2(mm) L3(mm) L4(mm) Hole Screw(mm) Hole Number Clip Number
35 17.5 / 5 25 Φ3.5 2 1
500 25 150 50 200 Φ3.5 3 4
S4-SLA/PL2 20.7*22.3
1000 25 190 100 200 Φ3.5 5 6
2000 25 195 100 200 Φ3.5 10 11
