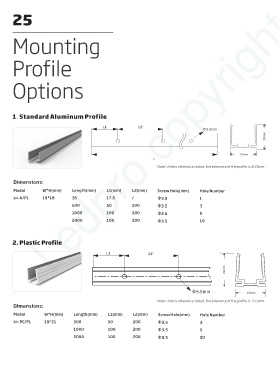

Page 25 - Series-4 Neon-Flex manual
P. 25
Ledpro copyright
25
Mounting
Profile
Options
1. Standard Aluminum Profile
L1 L2
Φ3.5mm
18mm
19mm
L
Note: Unless otherwise stated, the tolerance of the profile is ±0.5mm.
Dimensions:
Model W*H(mm) Length(mm) L1(mm) L2(mm) Screw Hole(mm) Hole Number
S4-A/PL 19*18 35 17.5 / Φ3.5 1
500 50 200 Φ3.5 3
1000 100 200 Φ3.5 5
2000 100 200 Φ3.5 10
2. Plastic Profile
L1 L2
21mm
Φ3.5mm 19mm
Note: Unless otherwise stated, the tolerance of the profile is ±0.5mm.
Dimensions:
Model W*H(mm) Length(mm) L1(mm) L2(mm) Screw Hole(mm) Hole Number
S4-PC/PL 19*21 500 50 200 Φ3.5 3
1000 100 200 Φ3.5 5
2000 100 200 Φ3.5 10
