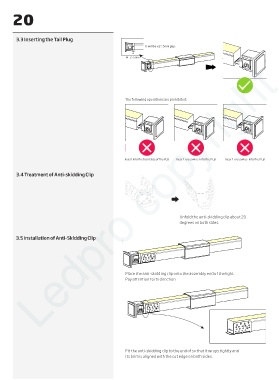

3.3 Inserting the Tail Plug
It will be a 2~5mm gap.
W
W=2~5mm
Ledpro copyright
The following operations are prohibited:
Insert into the front side of the PCB Insert crosswise into the PCB Insert crosswise into the PCB
3.4 Treatment of Anti-skidding Clip
Unfold the anti-skidding clip about 20
degrees on both sides.
3.5 Installation of Anti-Skidding Clip
Place the anti-skidding clip onto the assembly end of the light.
Pay attention to its direction
Fit the anti-skidding clip to the end of so that it wraps tightly and
its brim is aligned with the cut edge on both sides.
