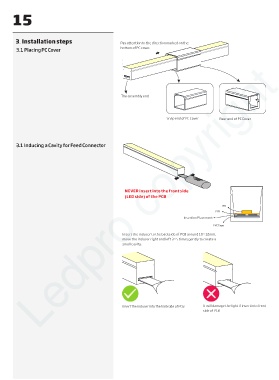

3. Installation steps Pay attention to the direction marked on the
bottom of PC cover.
3.1 Placing PC Cover

Ledpro copyright

The assembly end

Snap end of PC Cover Rear end of PC Cover

3.1 Inducing a Cavity for Feed Connector

NEVER insert into the front side
(LED side) of the PCB
LED
PCB
Insertion Placement
PVC Tape
Insert the inducer to the backside of PCB around 10~12mm,
move the inducer right and left 3~5 times gently to create a
small cavity.

Insert the inducer into the backside of PCB It will damage the light if insert into front
side of PCB
