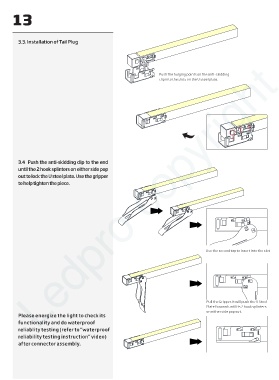

3.3. Installation of Tail Plug
Ledpro copyright
Push the bulging points on the anti-skidding
clip into the slots on the U steel plate.
3.4 Push the anti-skidding clip to the end
until the 2 hook splinters on either side pop
out to lock the U steel plate. Use the gripper
to help tighten the piece.
Use the second tap to insert into the slot
Pull the Gripper. It will push the U Steel
Plate forward until its 2 hook splinters
on either side pop out.
Please energize the light to check its
functionality and do waterproof
reliablity testing (refer to "waterproof
reliability testing instruction" video)
after connector assembly.
