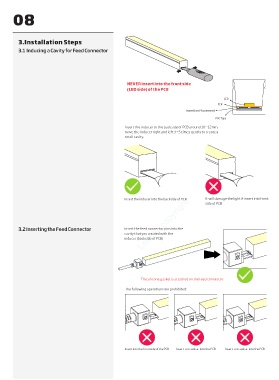

3.Installation Steps
3.1 Inducing a Cavity for Feed Connector
NEVER insert into the front side
(LED side) of the PCB
LED
PCB
Insertion Placement
PVC Tape
Insert the inducer to the backside of PCB around 10~12mm,
move the inducer right and left 3~5 times gently to create a
small cavity.
Ledpro copyright
Insert the inducer into the backside of PCB It will damage the light if insert into front
side of PCB
3.2 Inserting the Feed Connector Insert the feed connector pins into the
cavity that you created with the
inducer (backside of PCB)
The silicone gasket is attached on the feed connector.
The following operations are prohibited:
Insert into the front side of the PCB Insert crosswise into the PCB Insert crosswise into the PCB
