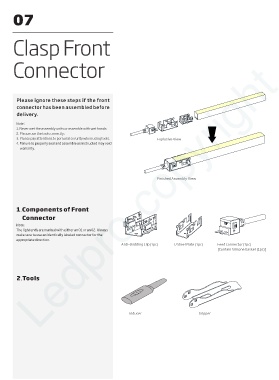

07

Clasp Front

Connector
Ledpro copyright

Please ignore these steps if the front
connector has been assembled before
delivery.
Note:
. 1 Never wet the assembly units or assemble with wet hands;
. 2 Please use the tools correctly;
. 3 Please pay attentions to personal security when using tools. Explosive View
4. Failure to properly seal and assemble as instructed may void
warranty.

Finished Assembly View

1.Components of Front
Connector
Note:
The light ends are marked with either an 01 or an 02. Always
make sure to use an identically labeled connector for the
appropriate direction.
Anti-skidding Clip (1pc) U Steel Plate (1pc) Feed Connector (1pc)
[Contain Silicone Gasket (1pc)]

2.Tools

Inducer Gripper
