Page 5 - Series-4 Neon-Flex manual
P. 5

05                Ledpro copyright

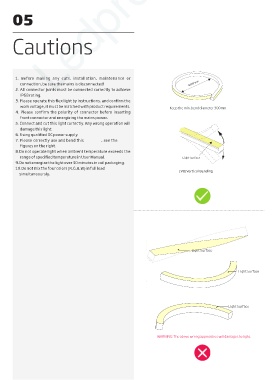

      Cautions








        1.  Before  making  any  cuts,  installation,  maintenance  or
                                                                                  Ф300 mm
          connection, be sure the mains is disconnected!
        2. All connector joints must be connected correctly to achieve
          IP68 rating.
        3. Please operate this flex light by instructions, and confirm the
          work voltage, it must be matched with product requirements.
                                                                         Keep the min. bend diameter 300mm
        4.  Please  confirm  the  polarity  of  connector  before  inserting
          front connector and energizing the mains power.
        5. Connect and cut this light correctly. Any wrong operation will
          damage this light.
        6. Using qualified DC power supply.
        7. Please correctly use and bend this Neon-Flex, see the
          figures on the right.
        8.Do not operate light when ambient temperature exceeds the
          range of specified temperature in User Manual.                       Light Surface
        9.Do not energize the light over 30 minutes in coil packaging.
        10.Do not mix the four colors (R,G,B,W) in full load
                                                                              (VB)Vertical Bending
         simultaneoursly.


















                                                                                   Light Surface




                                                                                                       Light Surface







                                                                                                  Light Surface






                                                                    WARNING: The above wrong approaches will damage the light.
   1   2   3   4   5   6   7   8   9   10
