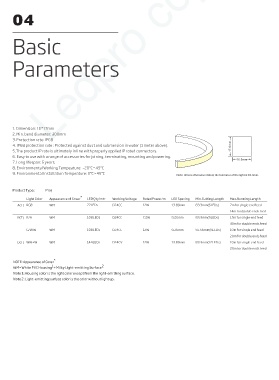

Page 4 - Series-4 Neon-Flex manual

3. Protection rate: IP68Ledpro copyright

04

Basic

Parameters

1. Dimension: 16*17mm
2. Min. bend diameter: 300mm

4. IP68 protection rate : Protected against dust and submersion in water (1 meter above). 17.0mm
5.The product IP rate is ultimately in line with properly applied IP rated connectors.
6. Easy to use with a range of accessories for joining, terminating, mounting and powering.
16.0mm
7. Long lifespan: 5 years.
8. Environmental Working Tempeature: -20°C~45°C
9. Environmental Installation Tempeature: 0°C~45°C Note: Unless otherwise stated, the tolerance of the light is ±0.3mm.

Product Type: NFS4 (Pro)
*
Light Color Appearance of Cover LED Qty/mtr Working Voltage Rated Power/m LED Spacing Min.Cutting Length Max.Running Length
A(T) RGB WM 72LEDs D24CC 12W 13.89mm 83.3mm(6LEDs) 7m for single end feed
14m for double ends feed
B(T) R/A WM 108LEDs D24CC 7.2W 9.26mm 83.3mm(9LEDs) 15m for single end feed
30m for double ends feed
G/B/W WM 108LEDs D24CC 12W 9.26mm 55.56mm(6LEDs) 10m for single end feed
20m for double ends feed
D(T) WW+W WM 144LEDs D24CV 12W 13.89mm 83.3mm(12LEDs) 10m for single end feed
20m for double ends feed

*
NOTE: Appearance of Cover
1 2
WM=White PVC Housing +Milky Light-emitting Surface
Note 1: Housing color is the light color except from the light-emitting surface.
Note 2: Light-emitting surface color is the color without light up.
