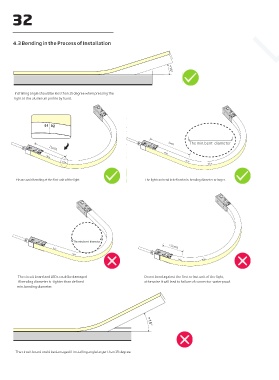

4.3 Bending in the Process of Installation
Installing angle should be less than 15 degree when pressing the <15°
light to the aluminum profile by hand.
01 02
The min.bent diameter
2unit
2unit
01 02
01 02
01 02
01 02 01 02
Please avoid bending at the first unit of the light. The light can bend in defined min. bending diameter or larger.
01 02
The min.bent diameter
01 02 <2unit
01 02
01 02 01 02
The circuit board and LEDs could be damaged Do not bend against the first or last unit of the light,
if bending diameter is tighter than defined otherwise it will lead to failure of connector waterproof.
min. bending diameter.
The circuit board could be damaged if installing angle larger than 15 degree. >15°
