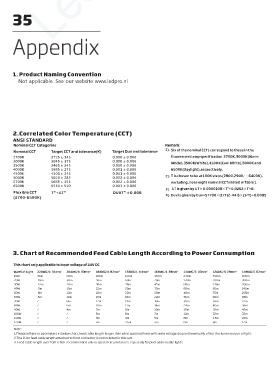

1. Product Naming Convention
Not applicable. See our website www.ledpro.nl
2.Correlated Color Temperature (CCT)
ANSI STANDARD
Nominal CCT Categories Remark:
1). Six of the nominal CCTs correspond to those in the
Nominal CCT Target CCT and tolerance(K) Target Duv and tolerance
fluorescent lamp specification 2700K,3000K(Warm
White),3500K(White),4100K(Cool White),5000K and
6500K(Daylight),respectively.
2). T is chosen to be at 100K steps (2800,2900,…,6400K),
excluding, hose eight nominal CCTs listed in Table 1.
2
3). ΔT is given by ΔT = 0.0000108×T +0.0262×T+8.
2)
Flexible CCT T +ΔT 3) DUVT ±0.006
4)
4). Duv is given by Duv=57700×(1/T)2-44.6×(1/T)+0.0085
(2700-6500K)
3. Chart of Recommended Feed Cable Length According to Power Consumption
This chart only applicable to input voltage of 24V DC
WattS of Light 22AWG/0.34mm² 20AWG/0.53mm² 18AWG/0.82mm² 17AWG/1.04mm² 16AWG/1.38mm² 14AWG/2.07mm² 12AWG/3.29mm² 10AWG/5.62mm²
10W 36m 60m 100m 120m 140m 240m 400m 600m
20W 18m 30m 50m 60m 70m 120m 200m 300m
30W 12m 20m 30m 38m 45m 80m 130m 200m
40W 8m 15m 22m 28m 35m 60m 95m 140m
50W 6m 12m 18m 22m 28m 48m 75m 105m
60W 5m 10m 15m 18m 22m 36m 60m 88m
70W / 8m 12m 14m 18m 30m 50m 72m
80W / 6m 10m 11m 14m 24m 40m 58m
90W / 4m 7m 8m 10m 18m 30m 45m
100W / / 5m 6m 7m 12m 22m 32m
110W / / 3m 4m 5m 8m 1 5m 22m
120W / / 2m 2.5m 3m 0m 8m 12m
Note:
1.Please adhere to parameters in below chart, feed cable length longer than what specified here will create voltage drop and eventually affect the lumen output of light.
2.The 0.3m feed cable length attached to front connector is not included in this cart
3. Feed cable length over 10m is NOT recommended unless special circumstances, especially for pixel addressable lights.
