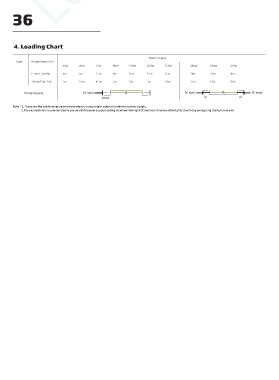

4. Loading Chart
Power Supply
Type. Rated Power /mtr
35w 60w 75w 80w 100w 120w 150w 185w 240w 320w
6.5w/7.2w/8w 3m 6m 7.5m 8m 10m 12m 15m 18m 24m 30m
S4
10.6w/11w/12w 2m 3.5m 4.5m 5m 6m 7m 10m 12m 14m 20m
Energizing way DC input DC input DC input
01/02 01 02
Note : 1. These are the light maximum recommended running length subject to selected power supply.
2. For example: it is recommended to use one 80W power supply loading maximum 8m light (7.2w/m) or maximum 5m light (12w/m) by energizing the light one end.
