LEDPRO · Neon-Flex · 24 V DC
Neon-FacFlex-3D
Two-way bendable Neon-Flex for flowing architectural light lines

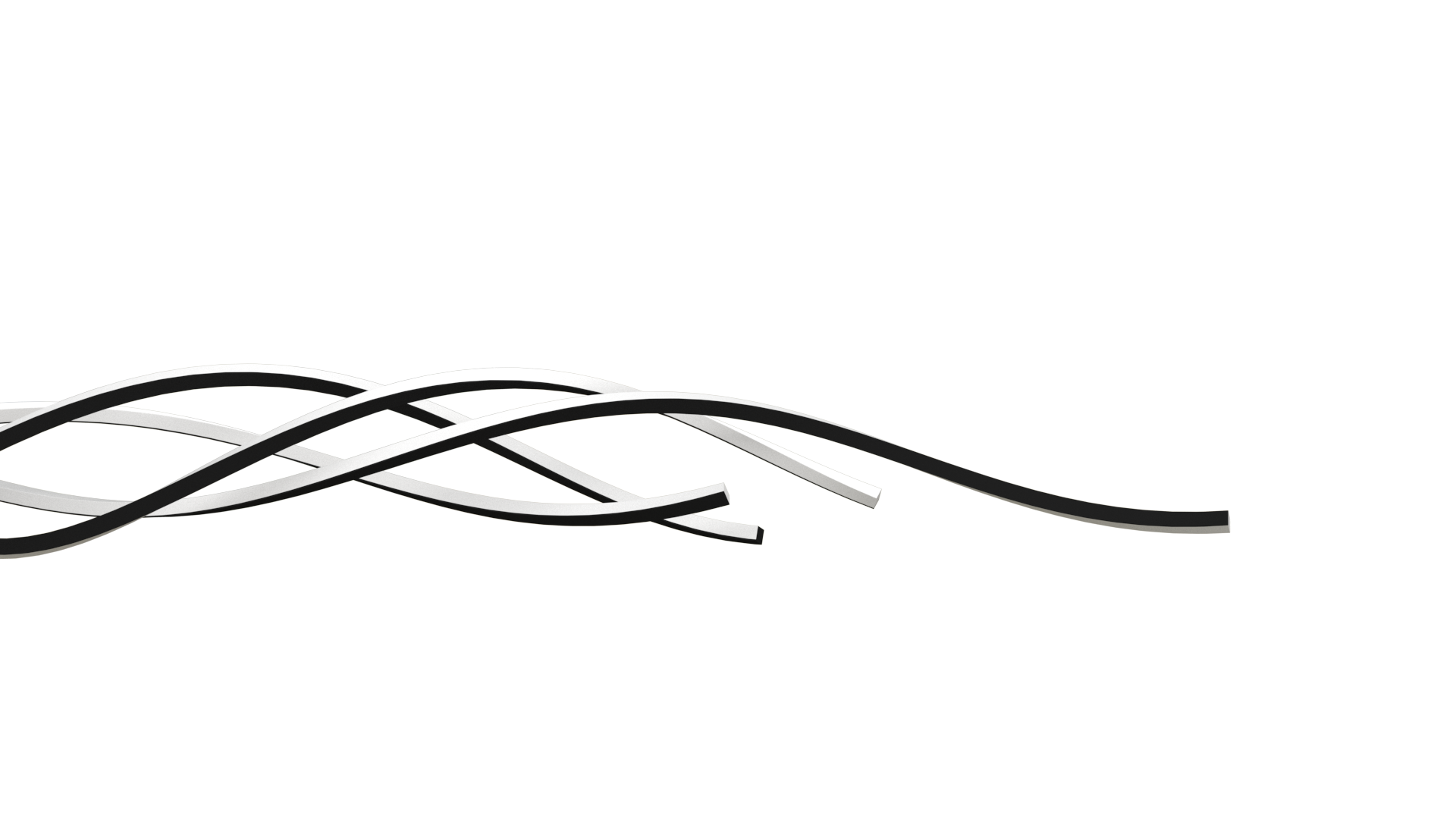

Neon-FacFlex-3D bends horizontally and vertically within the same light run. Combine the light line with Twin profile to form the Neon-FacFlex-sys system, following curved surfaces and complex architectural contours.
Neon-FacFlex-3D buigt zowel horizontaal als verticaal binnen dezelfde lichtlijn. In combinatie met het flexibele Twin profile vormt het het Neon-FacFlex-sys systeem voor gebogen oppervlakken en architectonische contouren.
Artist impression — illustrative application.
Key Advantages
Two-way bending
Create horizontal and vertical curves with one light line, following the intended architectural form.
Horizontale en verticale bochten in één lichtlijn voor vloeiende architectonische vormen.
Adaptable on site
Designed to accommodate real facade conditions and thermal changes while preserving the intended light line.
Ontworpen om zich aan te passen aan de gevelsituatie en thermische veranderingen, met behoud van de lichtlijn.
Matching flexible profile

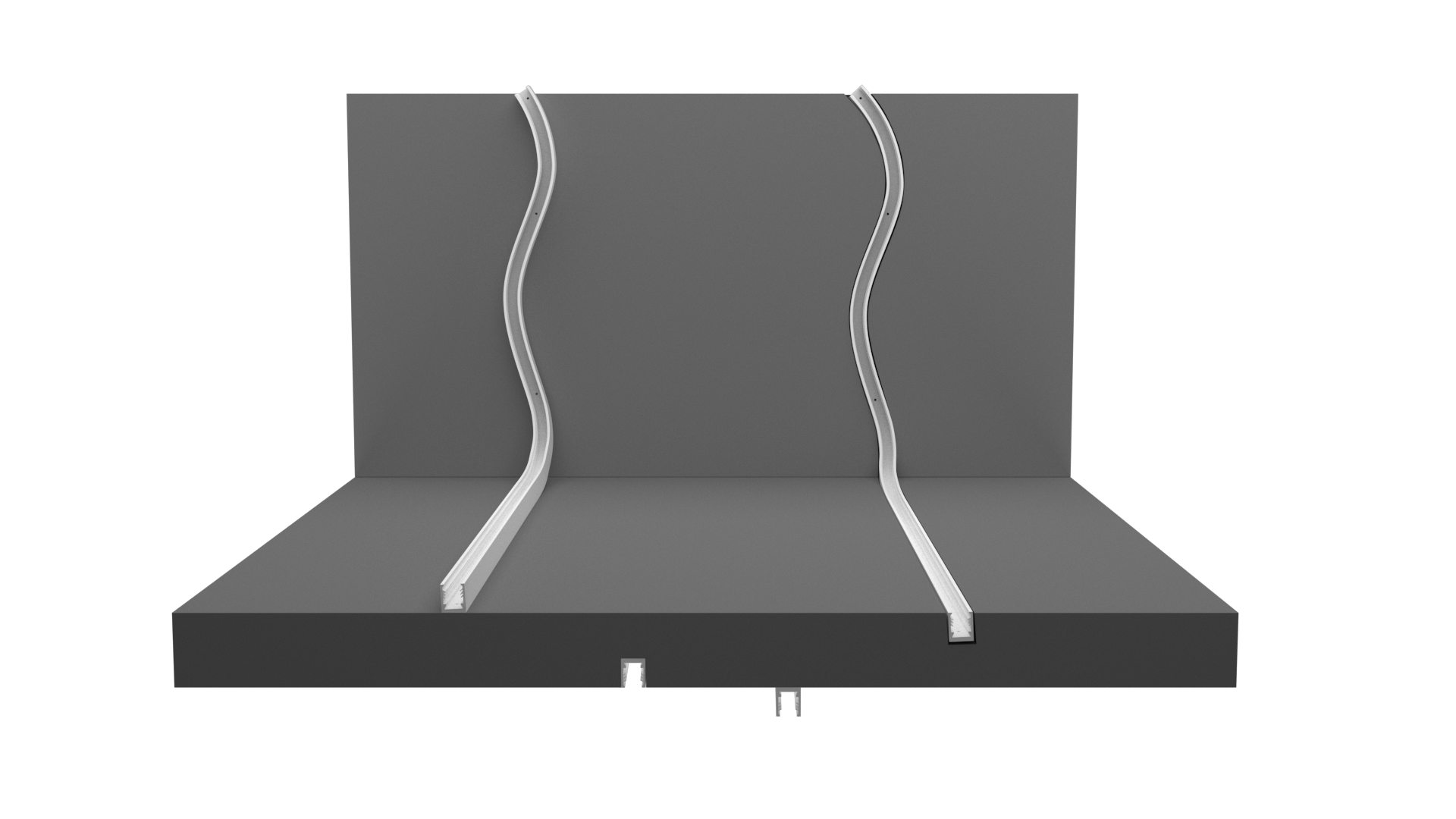

Twin profile follows the light line and supports surface-mounted and recessed installation approaches.
Twin profile volgt de lichtlijn en ondersteunt opbouw- en inbouwtoepassingen.
Light line & mounting profile
Neon-FacFlex-3D is the flexible light line. Twin profile is the matching flexible mounting profile. Neon-FacFlex-sys is the name of the combined system.
The light line and profile are shown as separate components, so the configuration can be selected for each project.
Dimensions & Bend Radius

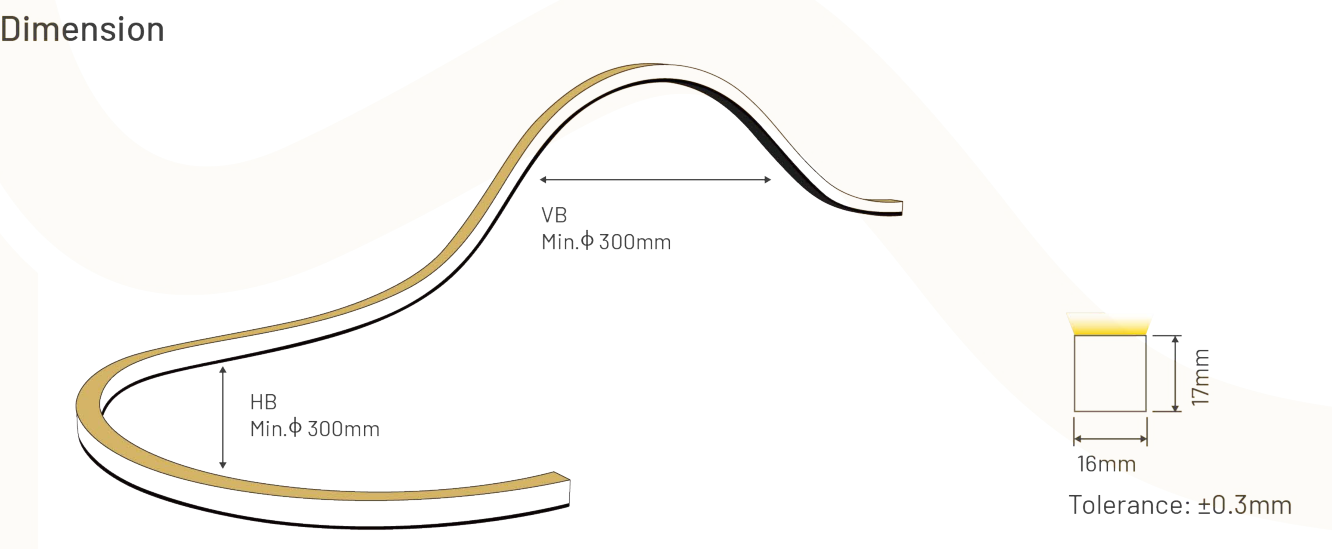

Light line cross-section: 16 × 17 mm, tolerance ±0.3 mm. Minimum horizontal and vertical bend diameter: Ø 300 mm (equivalent radius: 150 mm). Click the drawing to enlarge.
Technical Specifications
| Parameter | Specification |
|---|---|
| Working voltage | 24 V DC |
| IP rating | IP68 — not suitable for underwater use |
| Dimensions / tolerance | 16 × 17 mm / ±0.3 mm |
| Weight | 330 g/m |
| Ambient working temperature | −40 to +60 °C |
| Storage temperature | −40 to +60 °C |
| Ambient installation temperature | Above −40 °C |
| Maximum mounting surface temperature | 85 °C |
| Minimum bend diameter | Ø 300 mm, horizontal and vertical |
| Warranty | 10 years: monochrome; 7 years: Dynamic White and SPI RGBW |
Available Configurations
| Light line | Rated power | Available colours | CRI |
|---|---|---|---|
| Monochrome | 8 W/m | Red, green, blue; white: 2200, 2400, 2700, 3000, 3500, 4000, 5000 and 5700 K | ≥90 for white |
| Dynamic White | 12 W/m | 2200–5700 K | ≥90 |
| 12 SPI RGBW | 22 W/m | RGBW; white options: 2700 K, 3000 K or 4000 K* | ≥80 for white |
* White options for SPI RGBW are listed in the supplied supplementary light-line specification. Control equipment must match the selected version.
Feed Length & Connected Power
| Version | Single-end feed / standard length | Connected rated power at this length | Double-end feed |
|---|---|---|---|
| Monochrome 8 W/m | 10 m | 80 W | Not specified |
| Dynamic White 12 W/m | 6 m | 72 W | Not specified |
| SPI RGBW 22 W/m | 5 m | 110 W | Not specified |
Connected rated power is calculated as length × rated W/m; it is not a driver rating. Double-end feed lengths are not stated in the supplied specification. Verify the driver, cable size, voltage drop and permitted run length for each project.
Light Output
| Configuration | Published output | Reference beam angle |
|---|---|---|
| Monochrome white, 8 W/m at 3000 K | >620 lm/m | 109.1° |
| Dynamic White, 12 W/m at 5700 K | >320 lm/m | 113.1° for the illustrated 2200 K + 5700 K example |
| SPI RGBW | No combined lumen output specified | Not specified |
Values are reference values for the stated configurations and operating conditions. Output varies with colour and control setting.
Accessories & Mounting Profiles
Twin profile
A flexible mounting profile designed to work with the light line. The profile follows horizontal and vertical curves and supports integration with the mounting surface.
| Profile detail | Specification |
|---|---|

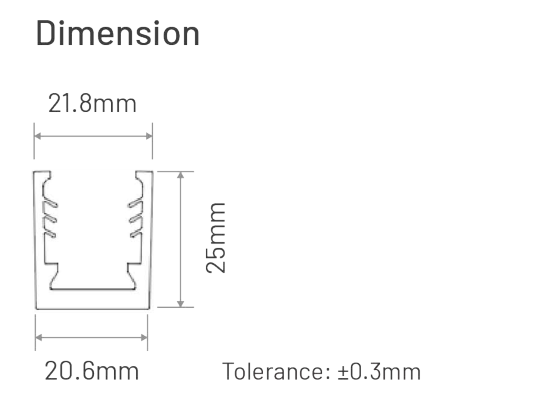

| Dimensions | 21.8 mm upper width × 25 mm height; 20.6 mm base width |
| Tolerance | ±0.3 mm |

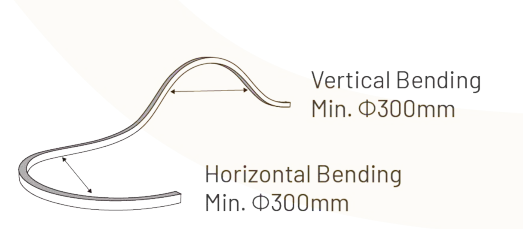

| Minimum bend diameter | Ø 300 mm, horizontal and vertical |
| Standard lengths | 55, 110, 200, 500 and 1000 mm |
| Appearance | Black / white standard; custom colours on request |
Mounting profile overview
| Image | Description | Product code |
|---|---|---|
| Twin profile — flexible mounting profile; available in the lengths listed above. | To be confirmed |
Factory-moulded connection options
The following images show factory injection-moulded connection and termination options. These are not presented as loose field-installation accessories.
| Image | Description | Product code |
|---|---|---|

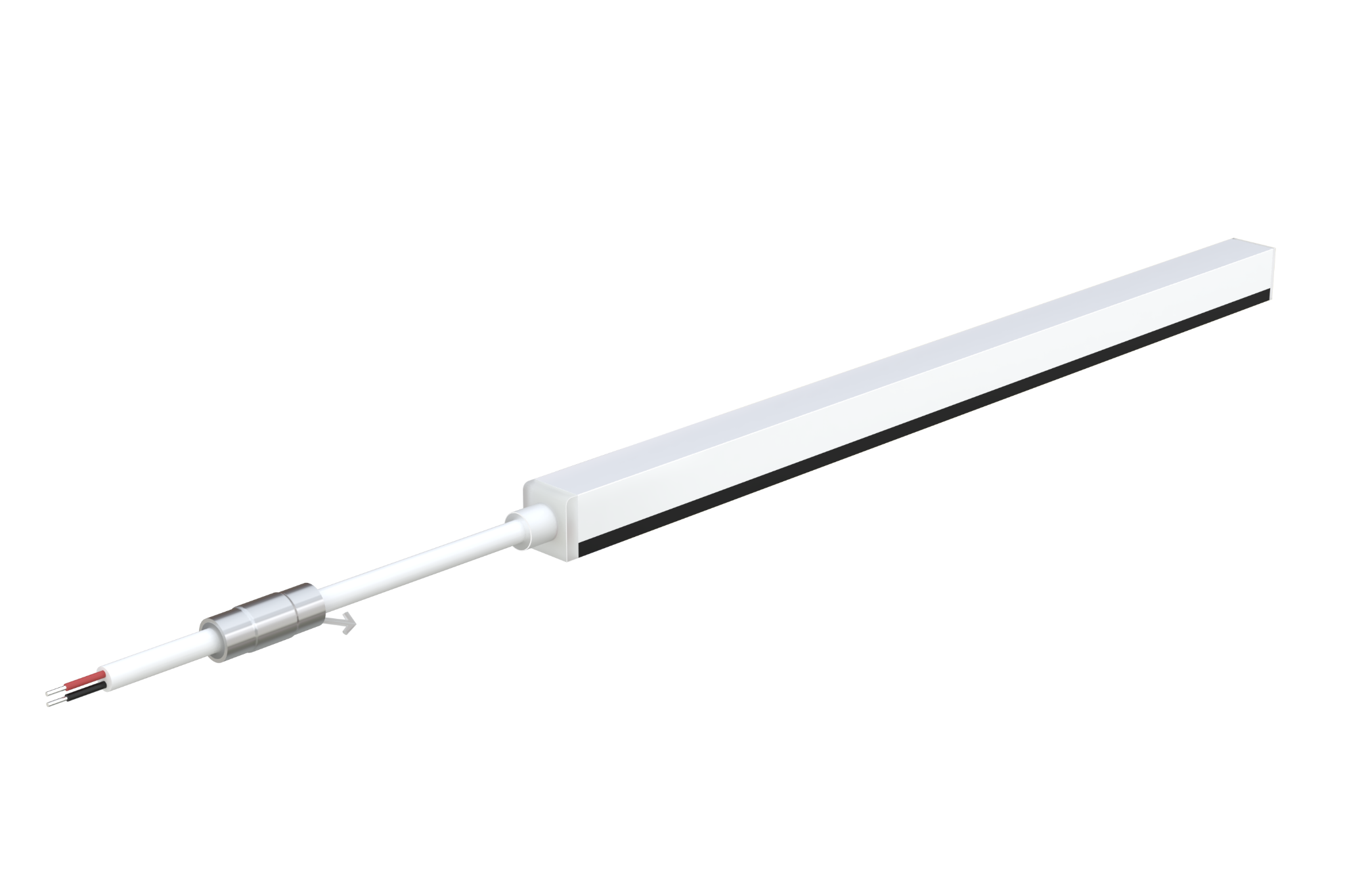

 | End feed — factory-moulded connection | To be confirmed |

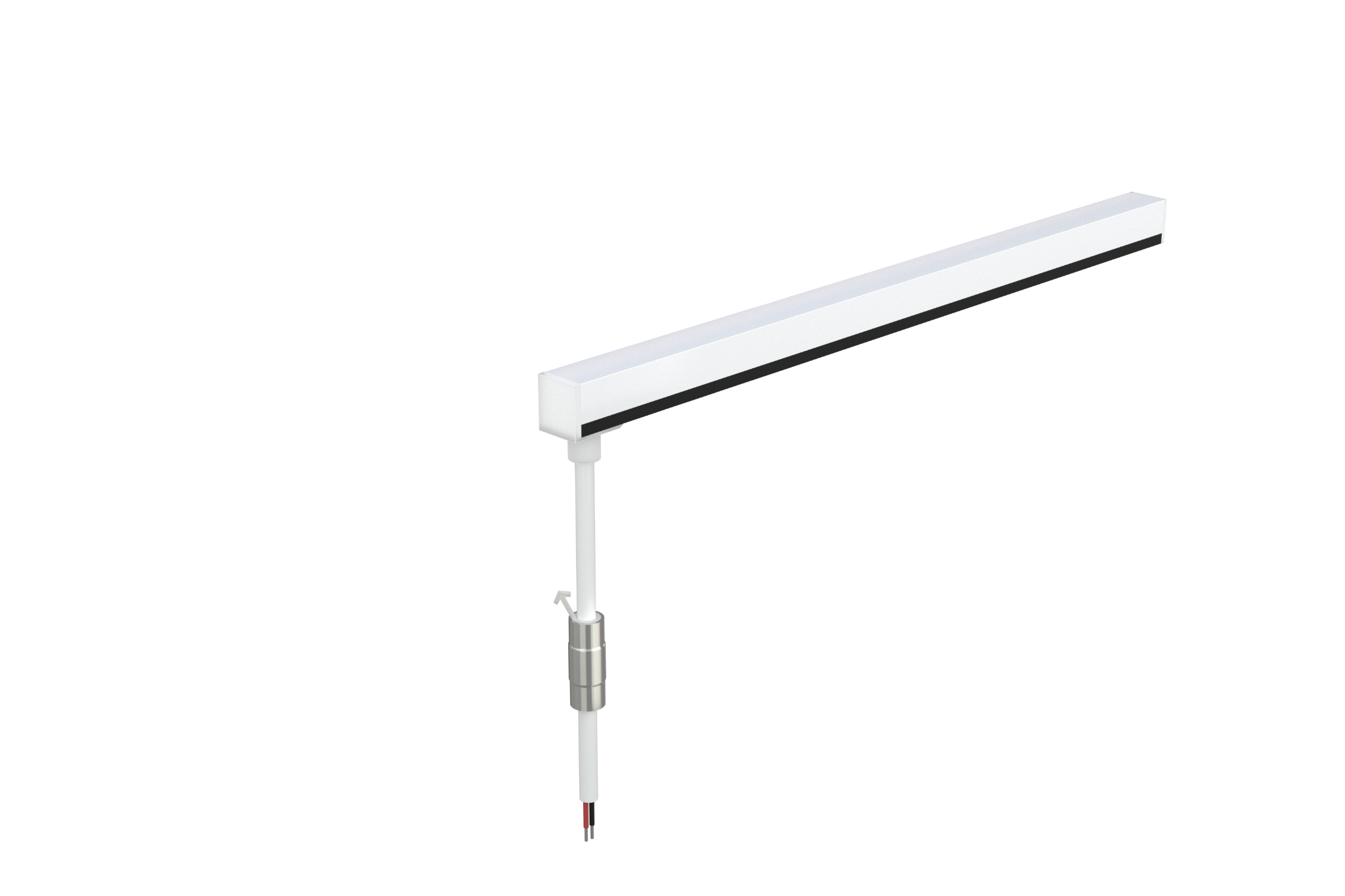

 | Bottom feed — factory-moulded connection | To be confirmed |

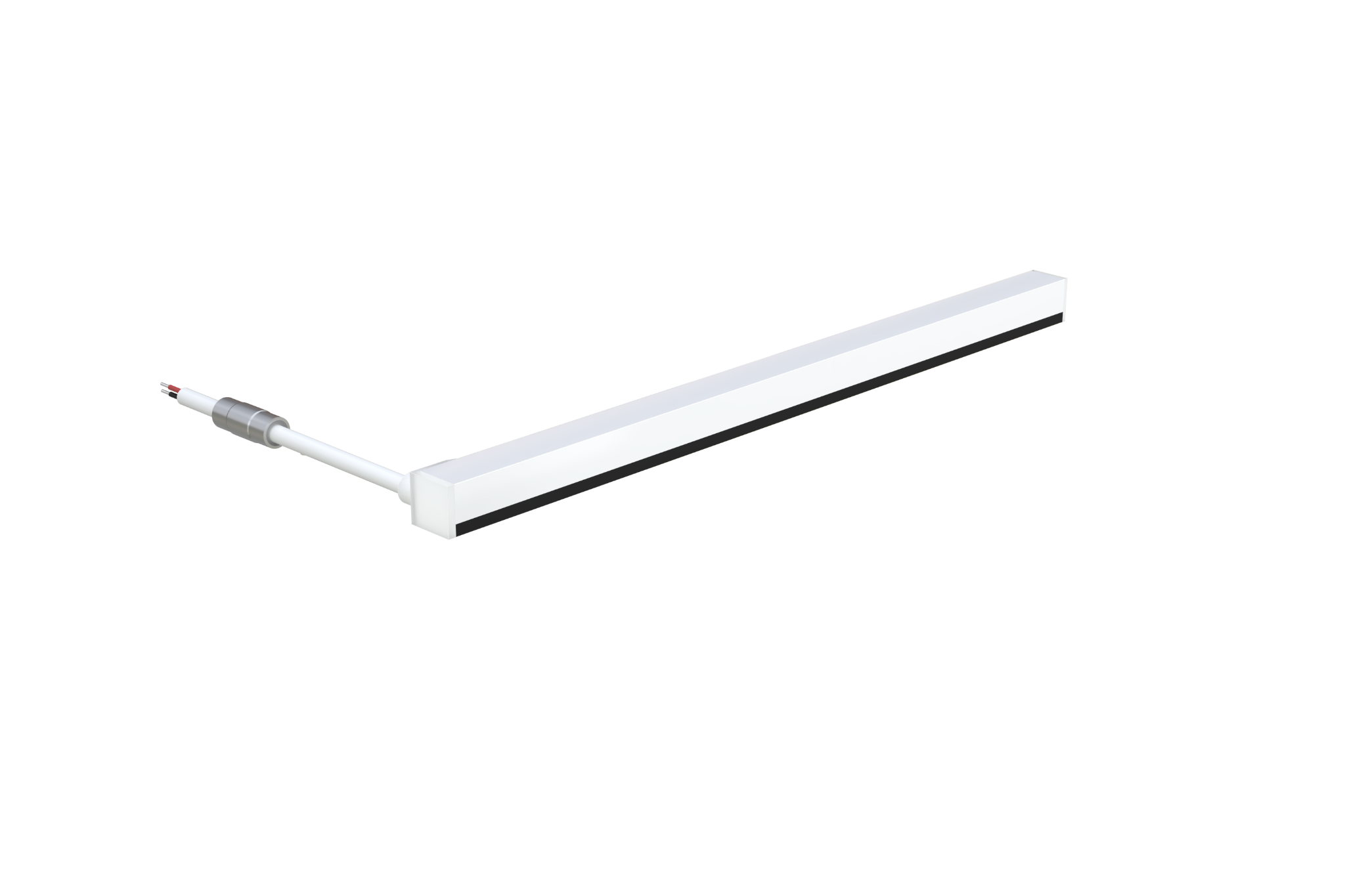

 | Side feed, left — factory-moulded connection | To be confirmed |

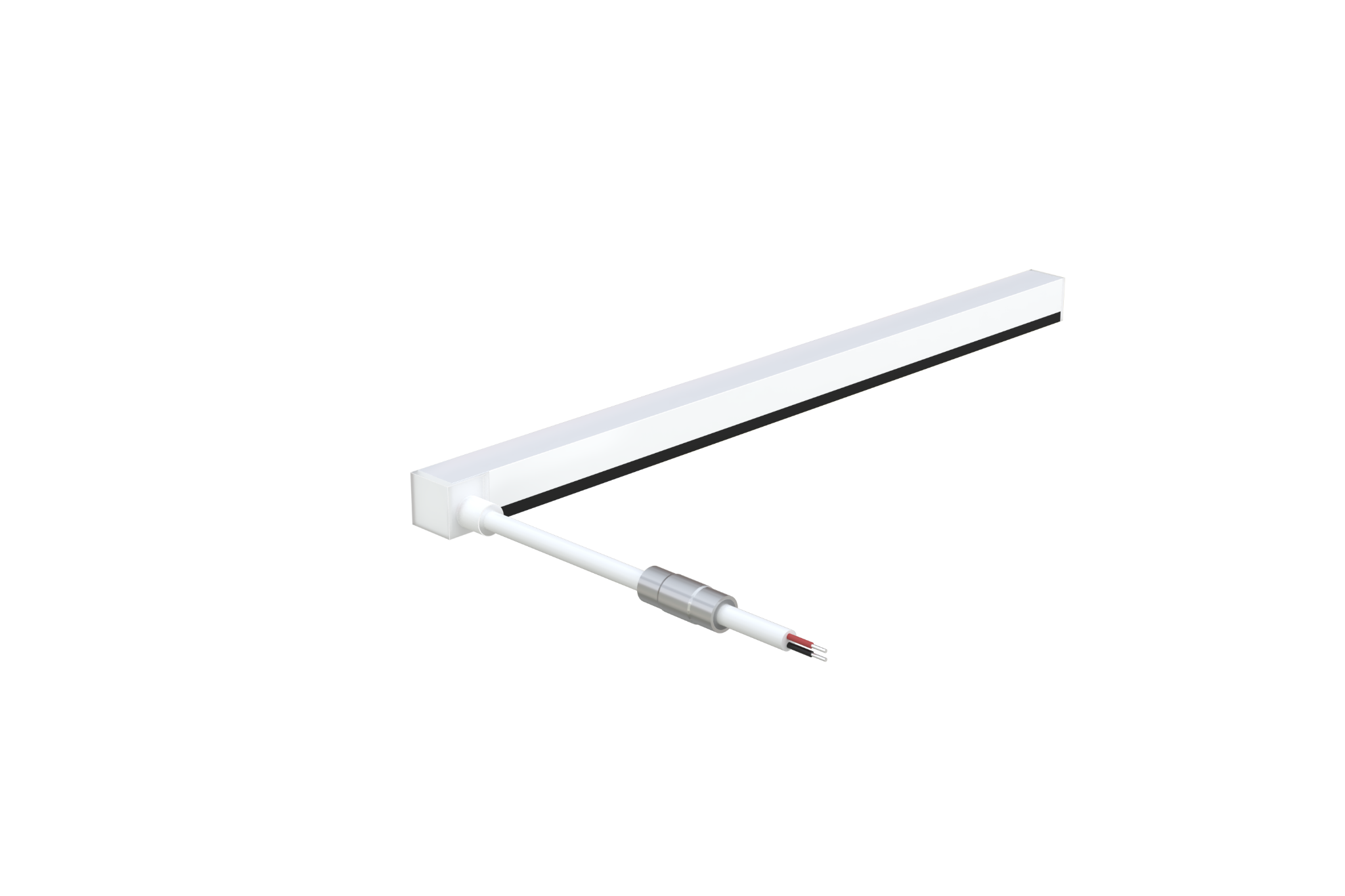

 | Side feed, right — factory-moulded connection | To be confirmed |

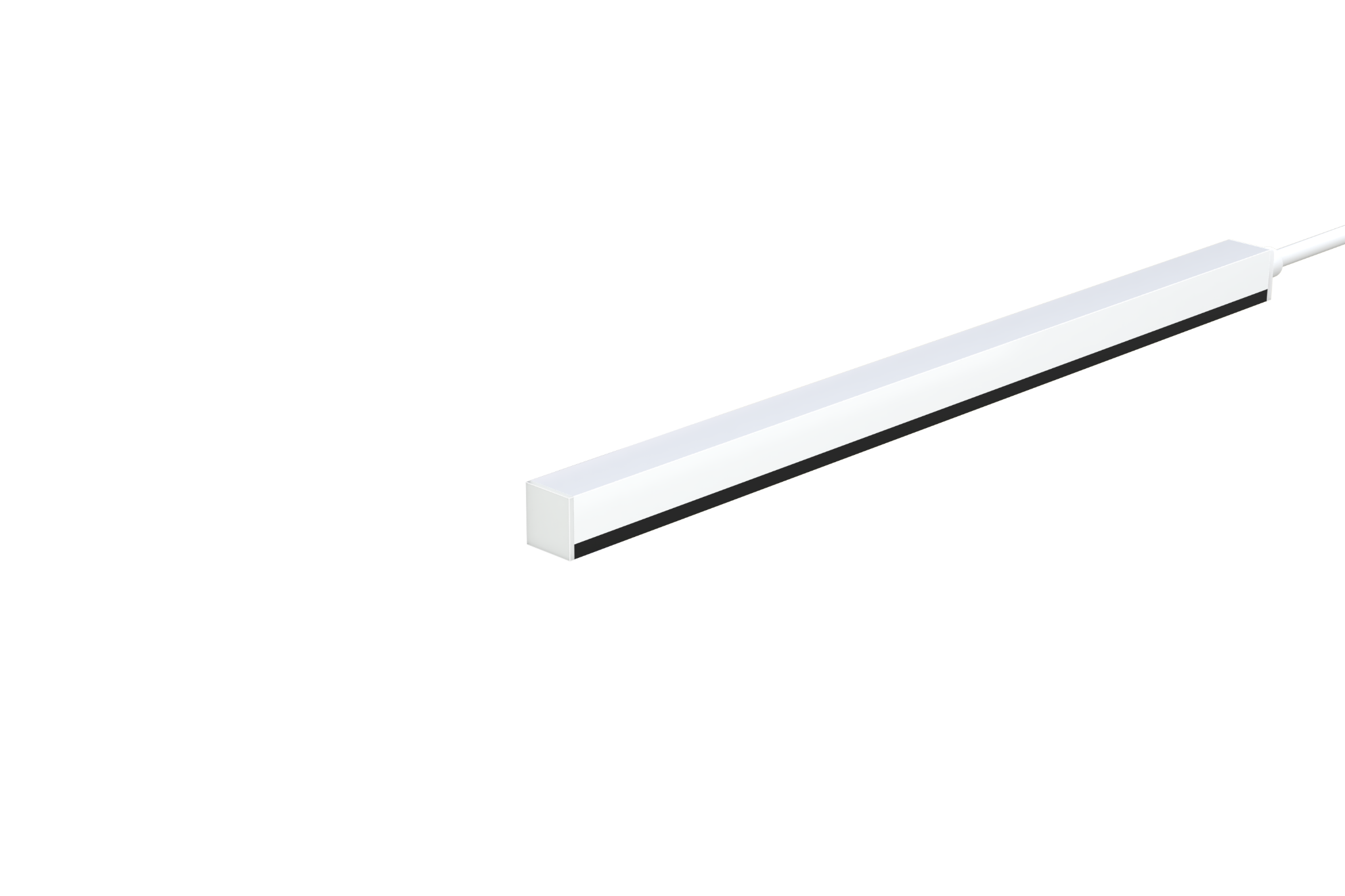

 | End cap — factory-moulded termination | To be confirmed |
Plan your light line
Contact LEDPRO for the right light line, mounting profile, power supply and control configuration.
