LEDPRO / FreeBend™ mounting solutions
TWIN 3D-Profile
Freedom to follow every curve.

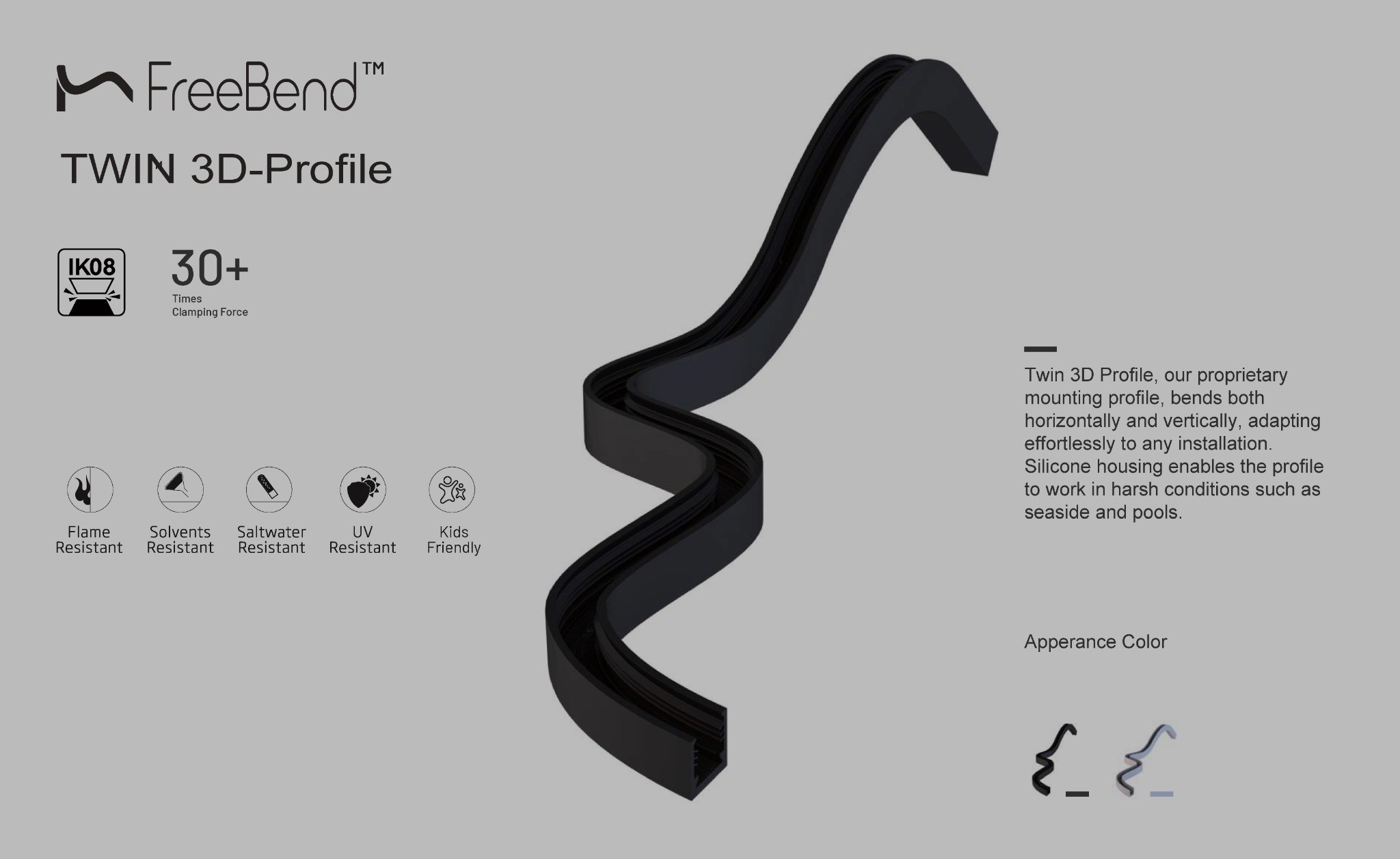

Create flowing lines with a mounting profile that bends both horizontally and vertically. The TWIN 3D-Profile combines flexible installation with a secure grip for compatible Neon-Flex lighting.
Discuss your project
Designed for creative installations
One profile. More possibilities.
Bend in two directions
Follow horizontal curves and vertical contours within one profile. Select the correct model and respect its minimum bending diameter.
Hold the light securely
Serrated silicone fins grip the compatible lighting product, supporting a range of mounting orientations while allowing installation and removal.
Built for demanding settings
The silicone housing offers UV, saltwater and solvent resistance. The range also features flame-resistant properties for challenging project environments.
Technical overview
Choose the profile for your project.

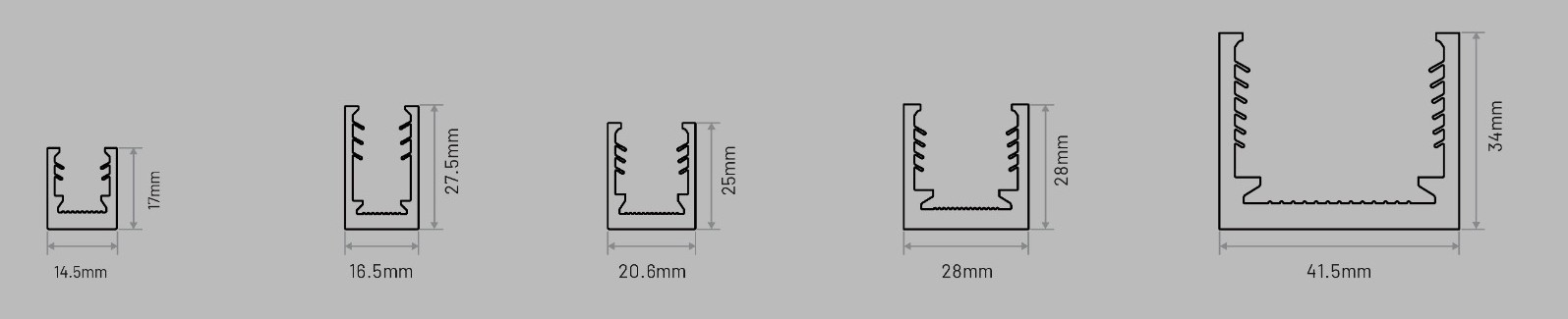

Compare dimensions, impact ratings and bending limits across the TWIN range.

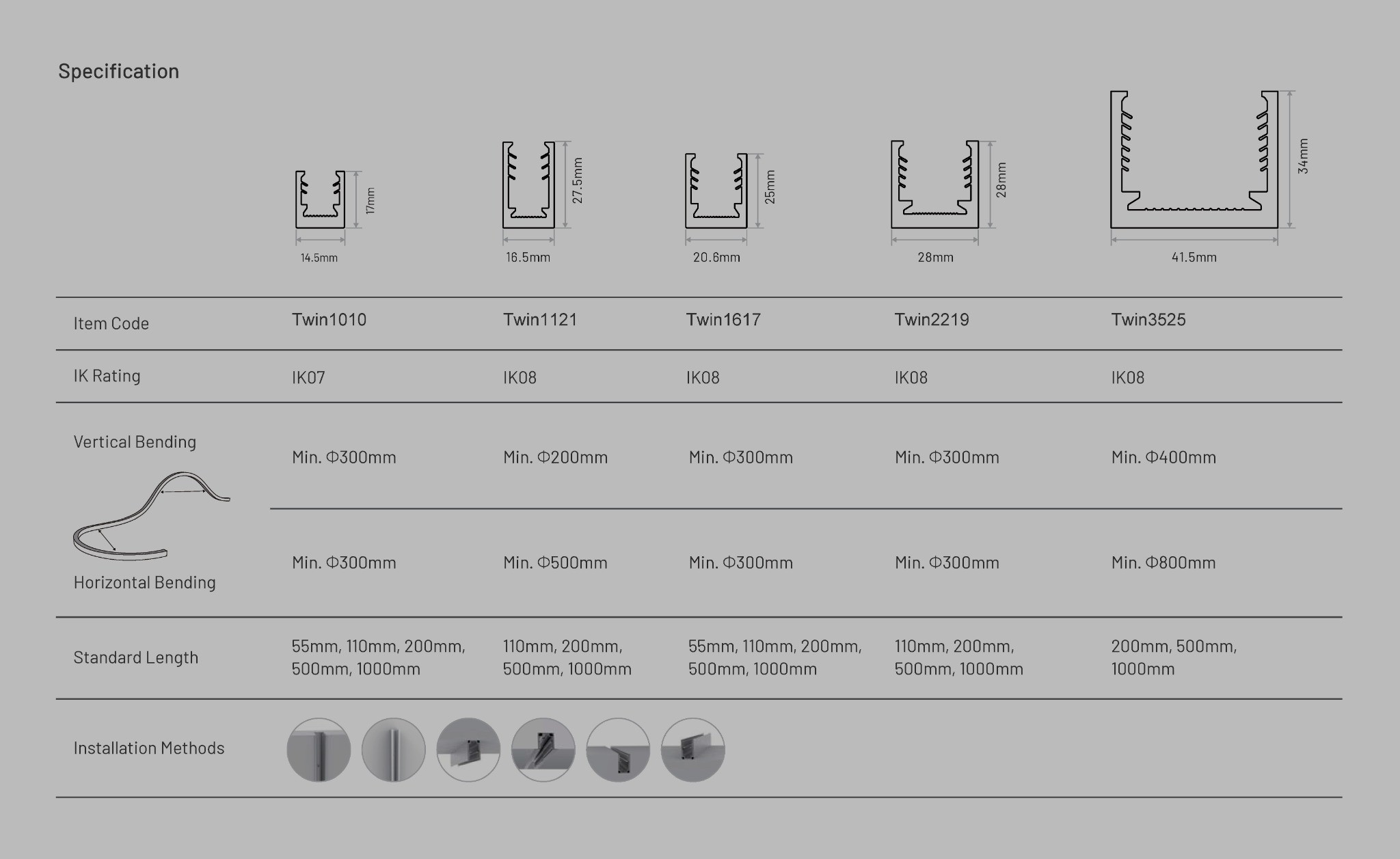

| Profile | Width × height | IK rating | Min. vertical bend Ø | Min. horizontal bend Ø | Standard lengths |
|---|---|---|---|---|---|
| Twin1010 | 14.5 × 17 mm | IK07 | 300 mm | 300 mm | 55 / 110 / 200 / 500 / 1000 mm |
| Twin1121 | 16.5 × 27.5 mm | IK08 | 200 mm | 500 mm | 110 / 200 / 500 / 1000 mm |
| Twin1617 | 20.6 × 25 mm | IK08 | 300 mm | 300 mm | 55 / 110 / 200 / 500 / 1000 mm |
| Twin2219 | 28 × 28 mm | IK08 | 300 mm | 300 mm | 110 / 200 / 500 / 1000 mm |
| Twin3525 | 41.5 × 34 mm | IK08 | 400 mm | 800 mm | 200 / 500 / 1000 mm |
Ø denotes bending diameter, not radius. Dimensions and specifications are taken from the supplied product sheets. Confirm the complete lighting and mounting combination for your application.
In focus / Series S2219

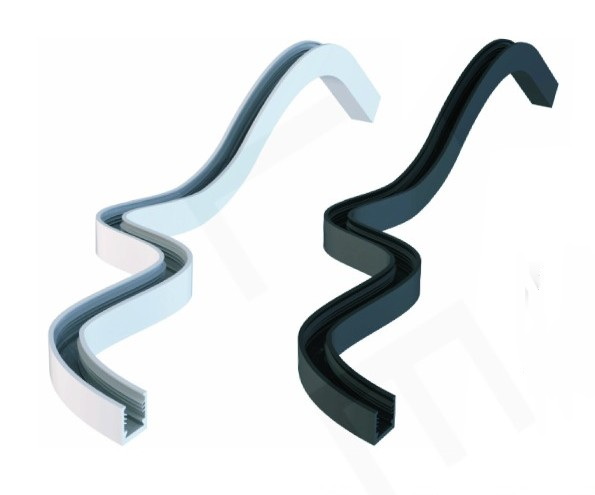

TWIN Profile S2219
A square mounting profile for S2219, with vertical and horizontal bending in one piece. The metal structure is fully encapsulated in silicone, combining a clean appearance with weather and corrosion resistance.
Available in standard black and white, with bespoke colours on request. Suitable installation methods depend on the application and supporting surface.
S2219 / Mounting details
Lengths and fixing positions
The following fixing dimensions apply to the S2219 profile in both standard finishes.
| Standard length | L1 | L2 | Slotted hole | Hole count |
|---|---|---|---|---|
| 110 mm | 11.6 mm | 88.4 mm | 3 mm | 2 |
| 200 mm | 11.6 mm | 88.4 mm | 3 mm | 3 |
| 500 mm | 29 mm | 88.4 mm | 3 mm | 6 |
| 1000 mm | 13.8 mm | 88.4 mm | 3 mm | 12 |

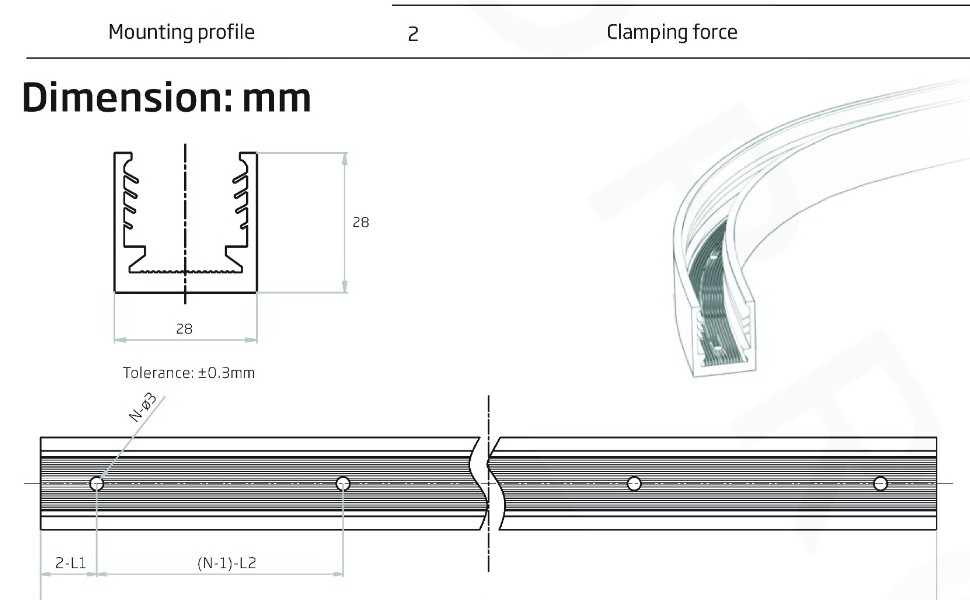

L1 is the distance at each end; L2 is the repeated fixing interval. See the original drawing below. Metal-part salt-spray test reference: IEC 68-2-11. Clamping-force test: factory-defined.
Original product sheets
Open the original sheets for illustrations, installation orientations and order codes.
FreeBend™ TWIN 3D-Profile — product overview
TWIN range — dimensions and specifications

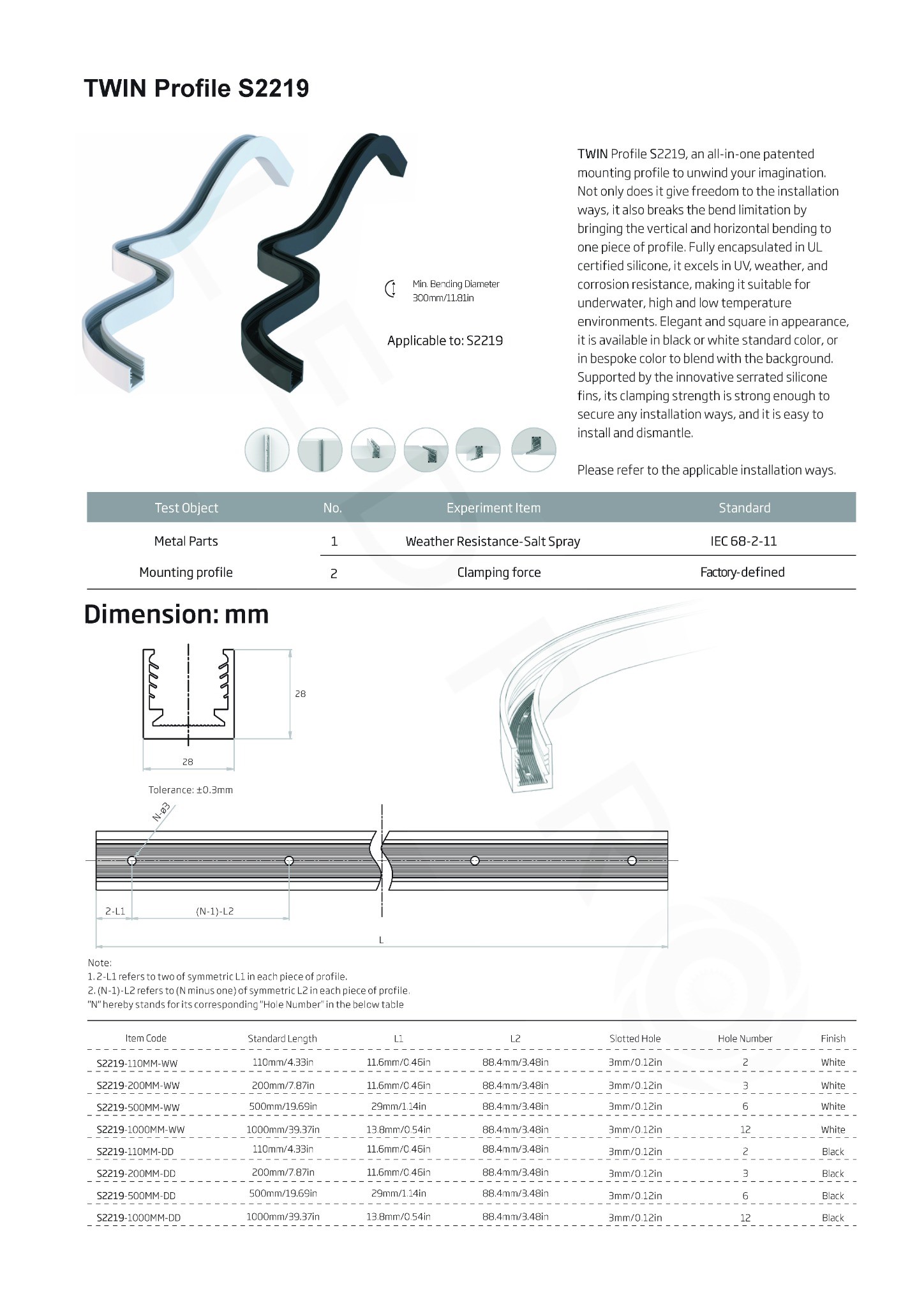

S2219 — technical drawing and order codes
LEDPRO / LED expertise since 2002
Let your design set the direction.
Send us your drawings, preferred Neon-Flex series and installation requirements.
We will help you select the right TWIN profile for your project.
