Design freedom

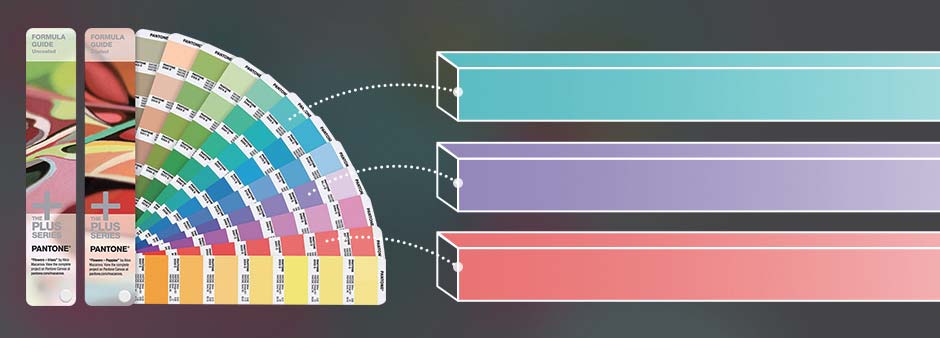

Choose a red, green or blue jacket, or specify a custom Pantone colour to suit your project.
Kies een rode, groene of blauwe mantel, of een Pantone-kleur op maat voor jouw project.
LEDPRO · Neon-Flex
Neon-Flex Skin Color
Colour by day. Light by night.
Bring colour into your lighting design with a coloured silicone jacket or a discreet black finish. Neon-Flex Skin Color complements the architecture even when the light is switched off.
Kleur overdag. Licht in de avond.
Geef je lichtontwerp karakter met een gekleurde siliconen mantel of een subtiele zwarte uitvoering. Neon-Flex Skin Color sluit aan bij de architectuur, ook wanneer de verlichting uitstaat.
24 V DCColoured & black siliconeCustom Pantone colours5-year warranty
Key Advantages
A discreet black finish
Blend the light line into dark surfaces, with 2600 K or 4200 K light in the listed black-finish configurations.
Laat de lichtlijn opgaan in donkere oppervlakken, met 2600 K of 4200 K licht in de vermelde zwarte uitvoeringen.
A choice of profiles
Select S3-Flat, S3-Dome, S4 or S10, with bending directions and finishes depending on the model.
Kies S3-Flat, S3-Dome, S4 of S10, met buigrichting en afwerking afhankelijk van de uitvoering.
Product Overview

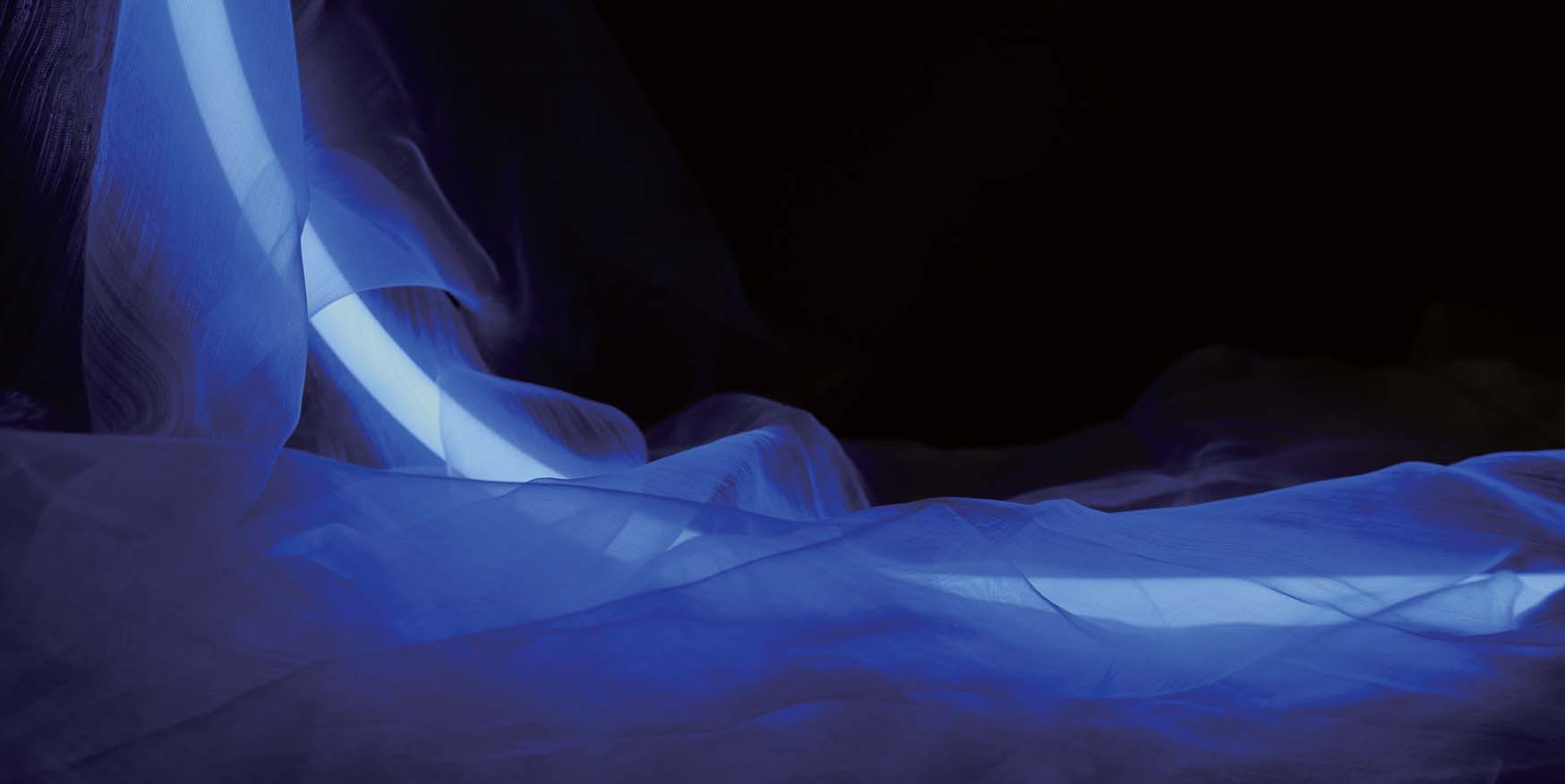

Bright-coloured finish
A visible colour accent when switched off, and a continuous light line when illuminated. Available for S3-Flat, S3-Dome and S4.
Pantone 186 CPantone 361 CPantone 285 C
Custom jacket colours on request. Jacket colour and emitted light colour are separate specification choices; confirm the required combination with LEDPRO.

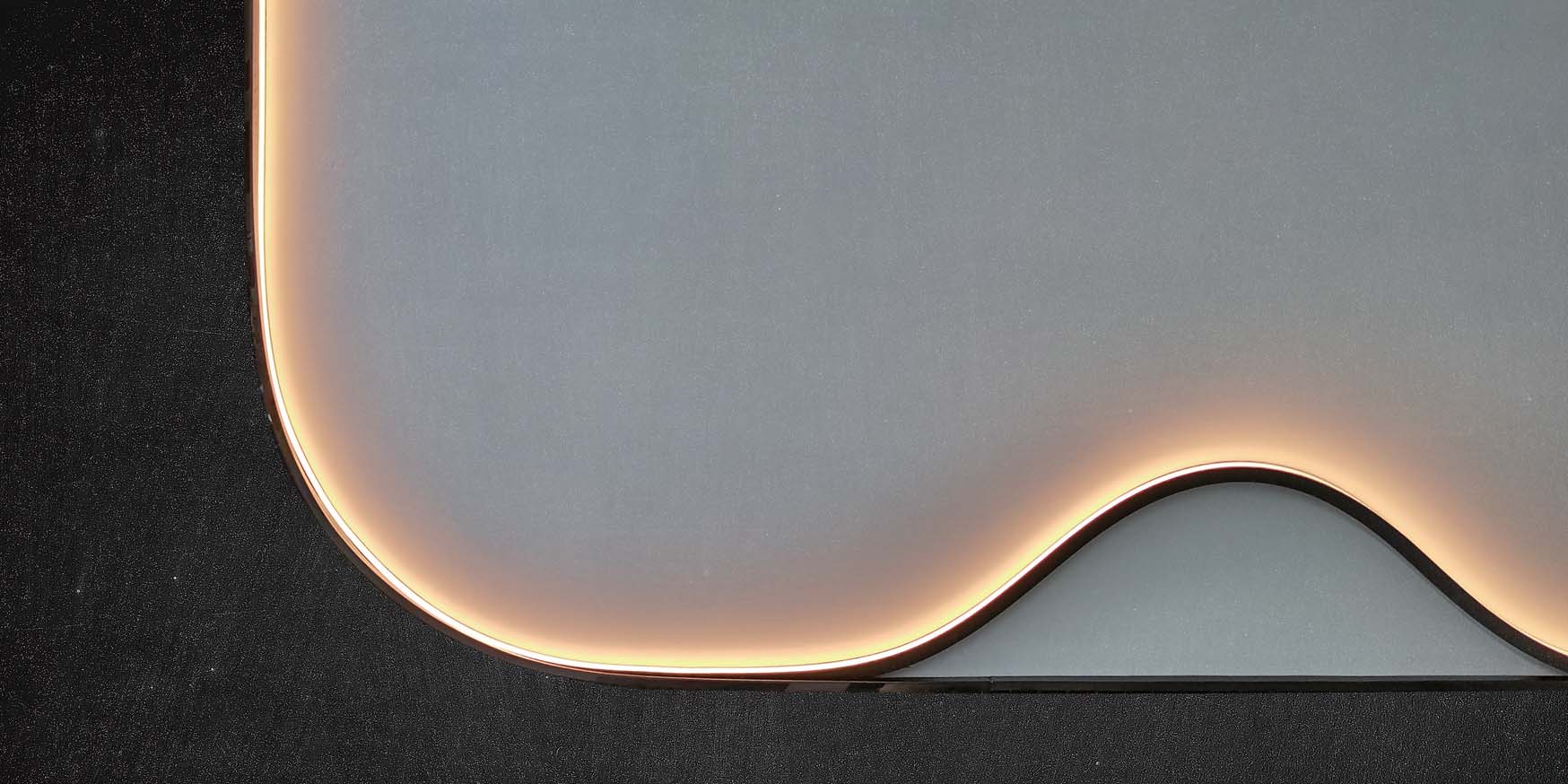

Black finish
A quiet visual presence on dark backgrounds, suitable for architectural details, hospitality and stage design. Available for S3-Flat, S4 and S10.
The listed black-finish options emit 2600 K or 4200 K light. Their light output differs from the coloured-finish range; see the configuration tables below.
Models & Available Finishes
| Model | Product code | Width × height | Bending | Coloured | Black |
|---|---|---|---|---|---|
| S3-Flat | NF-S3-Flat | 11.5 × 21 mm | HB | Yes | Yes |
| S3-Dome | NF-S3-Dome | 11.5 × 29 mm | HB | Yes | — |
| S4 | NF-S4-VB | 16 × 17 mm | VB | Yes | Yes |
| S4 | NF-S4-HB | 16 × 17 mm | HB | Yes | Yes |
| S10 | NF-S10-VB | 10 × 10 mm | VB | — | Yes |
HB = horizontal bending · VB = vertical bending. Coloured finish is not available for S10; black finish is not available for S3-Dome.
Technical Specifications
Supply voltage24 V DC
Jacket materialSilicone
Circuit typeCC; S10 black: CV
Power range4.5 / 8 / 12 W/m, by configuration
Ambient working temperature−40 °C to +55 °C
Impact protectionIK10
Warranty5 years
Connector constructionIP67 silicone injection-moulded
Resistance propertiesUV, solvents, flame and salt water
CC and CV identify the internal circuit type in the specification. All configurations use a 24 V DC supply; select the suitable driver and controls for the project. IP67 is specified for the moulded connector assembly; this is not a claim of suitability for permanent immersion.
Dimensions & Bending Direction

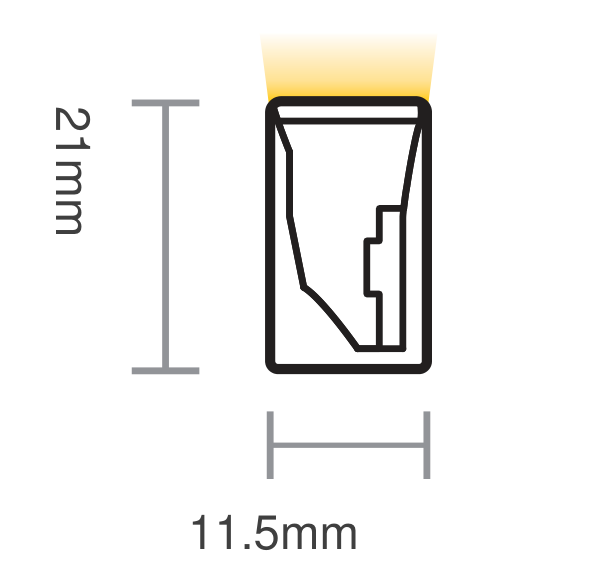

S3-Flat
11.5 × 21 mm

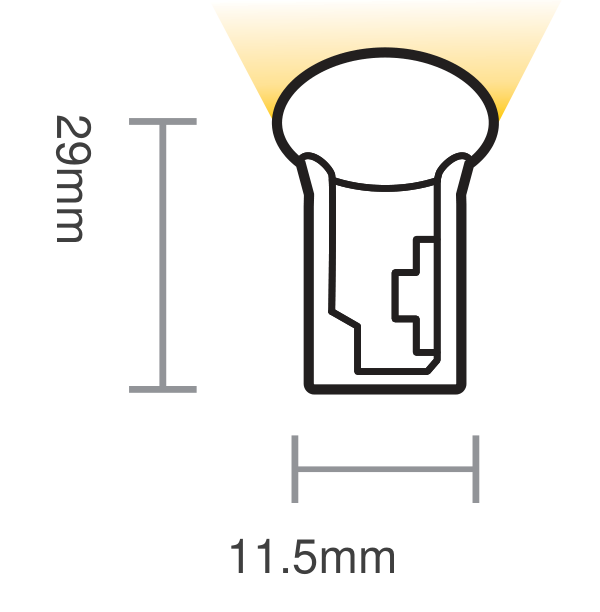

S3-Dome
11.5 × 29 mm

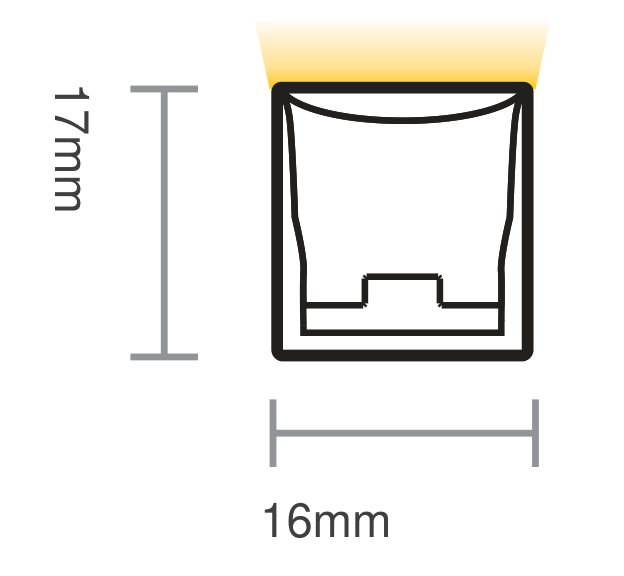

S4
16 × 17 mm

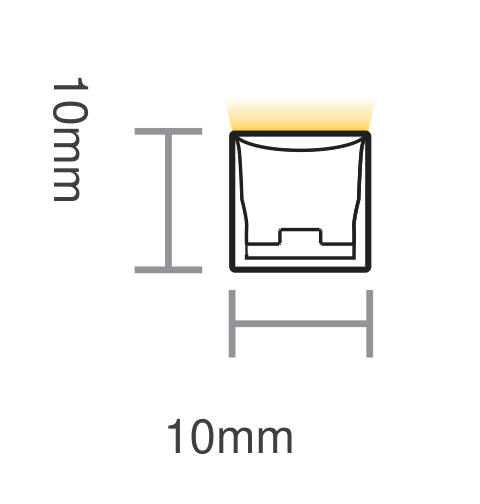

S10
10 × 10 mm

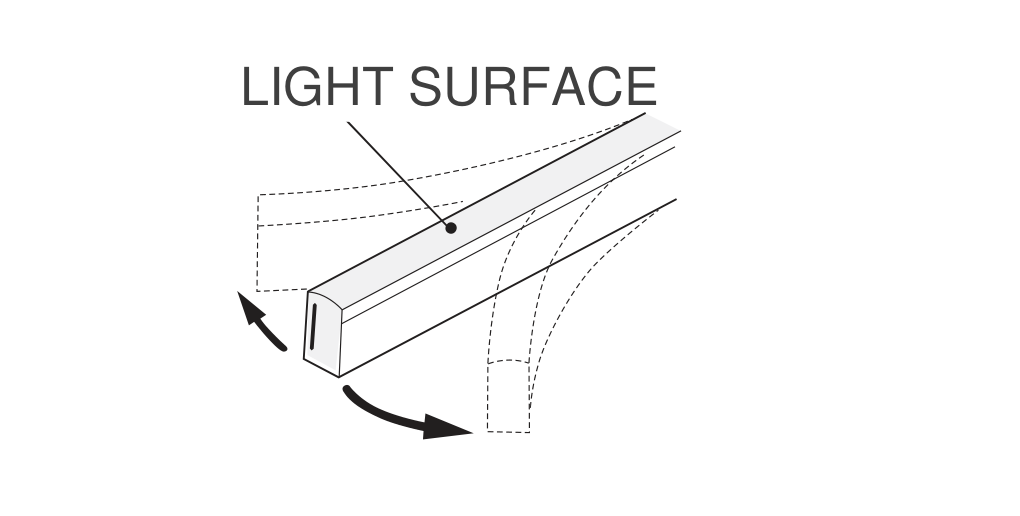

HB · Horizontal bending
S3-Flat · S3-Dome · S4-HB

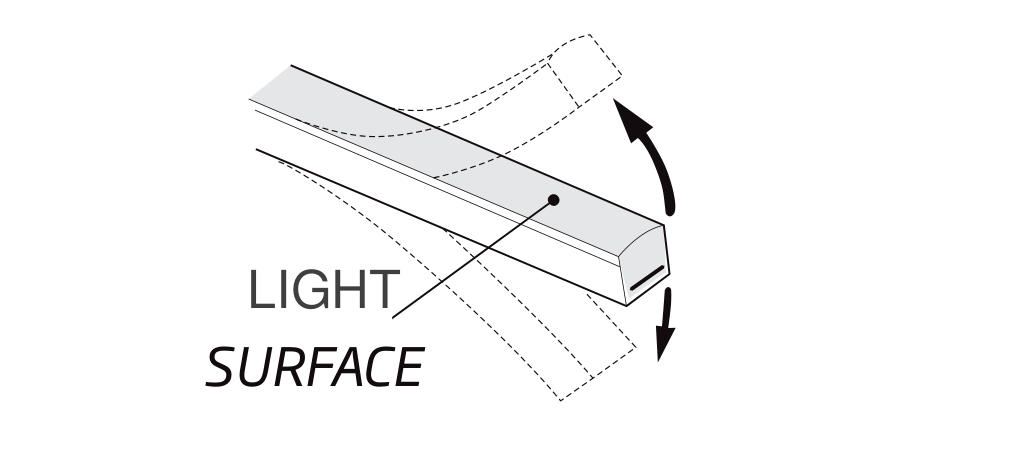

VB · Vertical bending
S4-VB · S10-VB
Dimensions exclude connectors and endcaps. Click a drawing to enlarge. The minimum bending radius is not stated in the supplied specification; request the model-specific value before installation.
Light Output & Available Configurations
Bright-coloured finish
| Product code | Light colour | Voltage / circuit | W/m | lm/m | Cut length (mm) | Max. run (m) | Load at max. run (W) |
|---|---|---|---|---|---|---|---|
| NF-S3-Flat | Red | 24 V DC / CC | 8 | 115 | 125 | 20 | 160 |
| NF-S3-Flat | Green | 24 V DC / CC | 12 | 290 | 83.3 | 15 | 180 |
| NF-S3-Flat | Blue | 24 V DC / CC | 12 | 70 | 83.3 | 15 | 180 |
| NF-S3-Dome | Red | 24 V DC / CC | 8 | 90 | 125 | 20 | 160 |
| NF-S3-Dome | Green | 24 V DC / CC | 12 | 250 | 83.3 | 15 | 180 |
| NF-S3-Dome | Blue | 24 V DC / CC | 12 | 58 | 83.3 | 15 | 180 |
| NF-S4-VB | Red | 24 V DC / CC | 8 | 200 | 125 | 20 | 160 |
| NF-S4-VB | Green | 24 V DC / CC | 12 | 450 | 83.3 | 15 | 180 |
| NF-S4-VB | Blue | 24 V DC / CC | 12 | 105 | 83.3 | 15 | 180 |
| NF-S4-HB | Red | 24 V DC / CC | 8 | 175 | 125 | 20 | 160 |
| NF-S4-HB | Green | 24 V DC / CC | 12 | 400 | 83.3 | 15 | 180 |
| NF-S4-HB | Blue | 24 V DC / CC | 12 | 90 | 83.3 | 15 | 180 |
Black finish
| Product code | Light colour | Voltage / circuit | W/m | lm/m | Cut length (mm) | Max. run (m) | Load at max. run (W) |
|---|---|---|---|---|---|---|---|
| NF-S3-Flat | 2600 K | 24 V DC / CC | 12 | 30 | 55.6 | 15 | 180 |
| NF-S3-Flat | 4200 K | 24 V DC / CC | 12 | 30 | 55.6 | 15 | 180 |
| NF-S4-VB | 2600 K | 24 V DC / CC | 12 | 60 | 55.6 | 15 | 180 |
| NF-S4-VB | 4200 K | 24 V DC / CC | 12 | 60 | 55.6 | 15 | 180 |
| NF-S4-HB | 2600 K | 24 V DC / CC | 12 | 50 | 55.6 | 15 | 180 |
| NF-S4-HB | 4200 K | 24 V DC / CC | 12 | 50 | 55.6 | 15 | 180 |
| NF-S10-VB | 2600 K | 24 V DC / CV | 4.5 | 10 | 35.7 | 15 | 67.5 |
| NF-S10-VB | 4200 K | 24 V DC / CV | 4.5 | 10 | 35.7 | 15 | 67.5 |
Each row is a separate configuration. Red, green and blue are individual light colours, not a specification for an RGB colour-changing version. Photometric values for custom jacket colours must be confirmed separately.
Maximum Run Length & Connected Load
| Configuration | Maximum run | Nominal load at maximum run |
|---|---|---|
| Coloured · red · 8 W/m | 20 m | 160 W |
| Coloured · green / blue · 12 W/m | 15 m | 180 W |
| Black · S3-Flat / S4 · 12 W/m | 15 m | 180 W |
| Black · S10 · 4.5 W/m | 15 m | 67.5 W |
Connected load is calculated as W/m × maximum run length; driver reserve is not included. The source does not state whether these lengths require single- or double-ended feeding. Confirm the feed arrangement, driver capacity, cable sizing and voltage drop for each project.
Connectors & Endcaps
Silicone injection-moulded connectors with IP67 protection. Transparent is the standard connector finish; coloured or black connectors are available subject to a minimum order quantity. Cable colours: white or black.
Connectors and endcaps are factory-moulded components, not loose endcaps for on-site fitting. Confirm the required cable exit and finish when ordering.
Accessories & Mounting Profiles
| Image | Description | Product code |
|---|---|---|
 | Aluminium mounting profile Silver or black finish | On request |
 | Bendable mounting profile Silver or black finish | On request |
 | Bendable serrated aluminium profile Silver or black finish | On request |
Specify the Neon-Flex model when selecting a mounting profile. Profile dimensions and product codes are not provided in this specification.

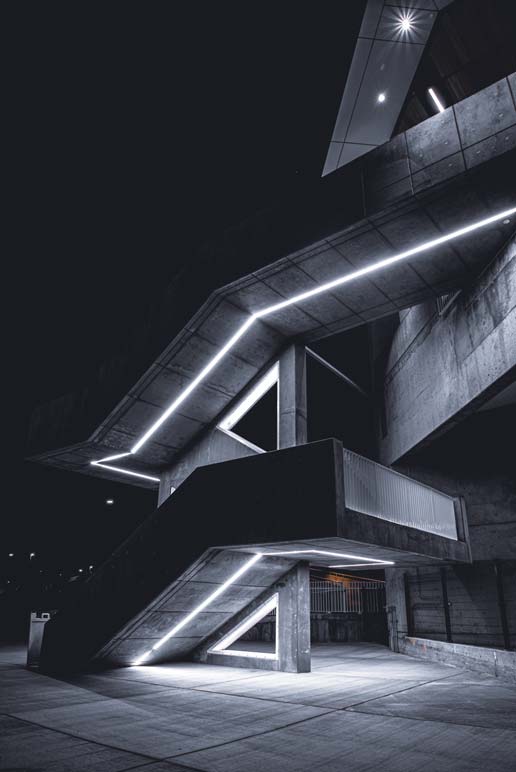

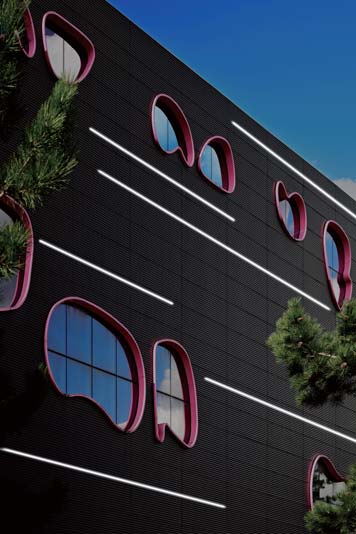

Application Examples
