Neon-Flex S2230 Suspended
Suspended architectural lighting with integrated stainless-steel wire guidance.
Vrijhangende architecturale verlichting met geïntegreerde doorvoer voor een roestvrijstalen spankabel.
Shape light across a space — straight or elegantly curved, indoors or outdoors.
Breng licht vrij door de ruimte — strak of vloeiend gebogen, binnen of buiten.
Key Advantages
Suspended without conventional profiles
The integrated upper channel accepts a stainless-steel suspension wire for light lines between suitable anchor points.
Een geïntegreerde kabeldoorvoer maakt vrijhangende lichtlijnen mogelijk tussen geschikte bevestigingspunten.
Straight or gently curved installations
Create elegant straight spans or naturally sweeping suspended lines, without an additional aluminium mounting profile.
Maak strakke overspanningen of vloeiende hangende lichtlijnen, zonder extra aluminium montageprofiel.
Indoor and outdoor applications
The IP67-rated silicone construction allows architectural applications inside and outside, subject to suitable installation.
De IP67-siliconenconstructie is geschikt voor architecturale toepassingen binnen en buiten, mits correct geïnstalleerd.
Architectural freedom
Suitable for lobbies, shopping streets, public spaces and other creative architectural concepts.
Geschikt voor entrees, winkelstraten, publieke ruimten en creatieve architectonische ontwerpen.
Architectural Applications
Suspension lines create a distinctive visual element across open spaces. Explore three concepts for S2230sus.

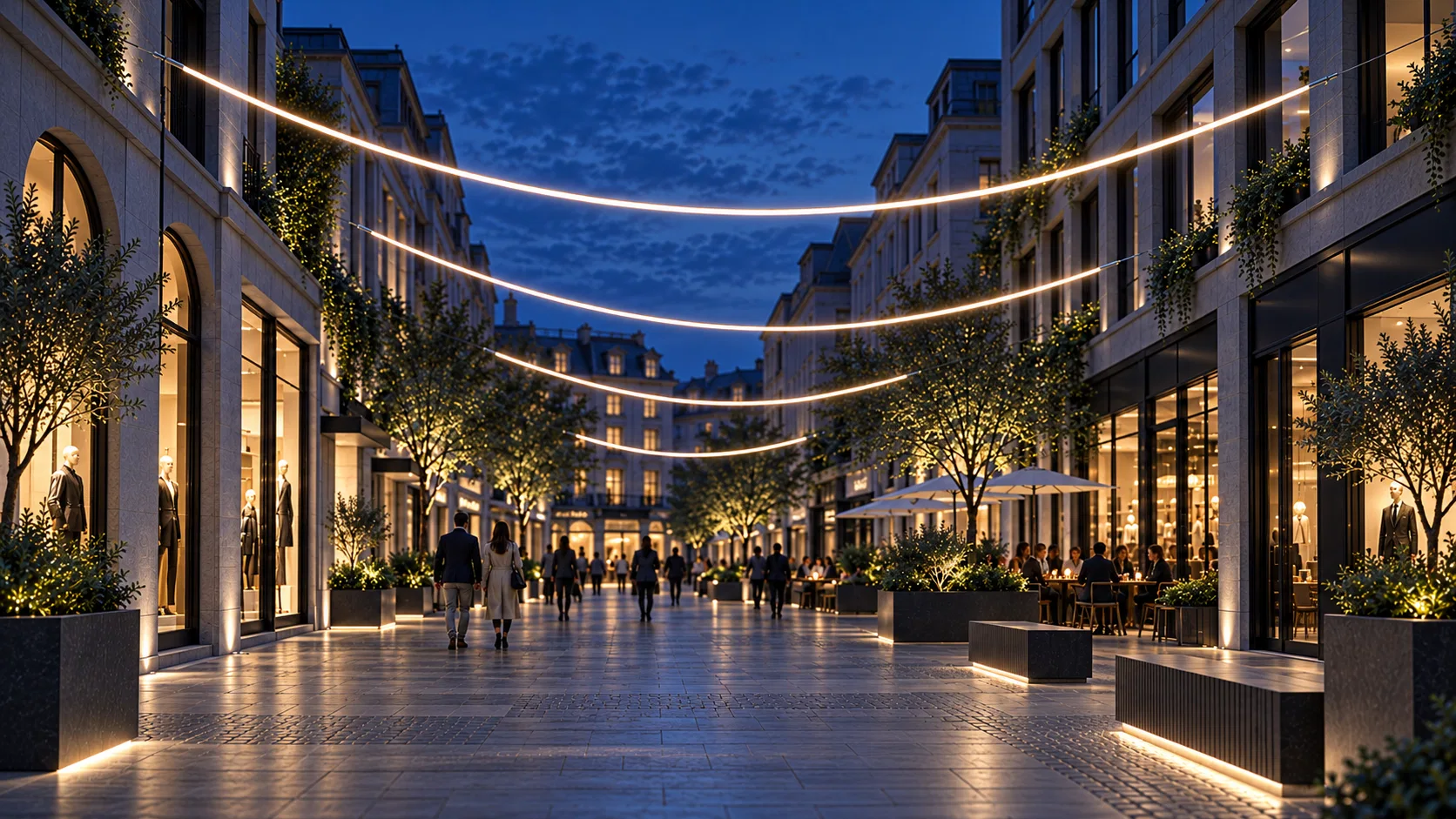

Shopping streets
Luminous spans between opposite facades.

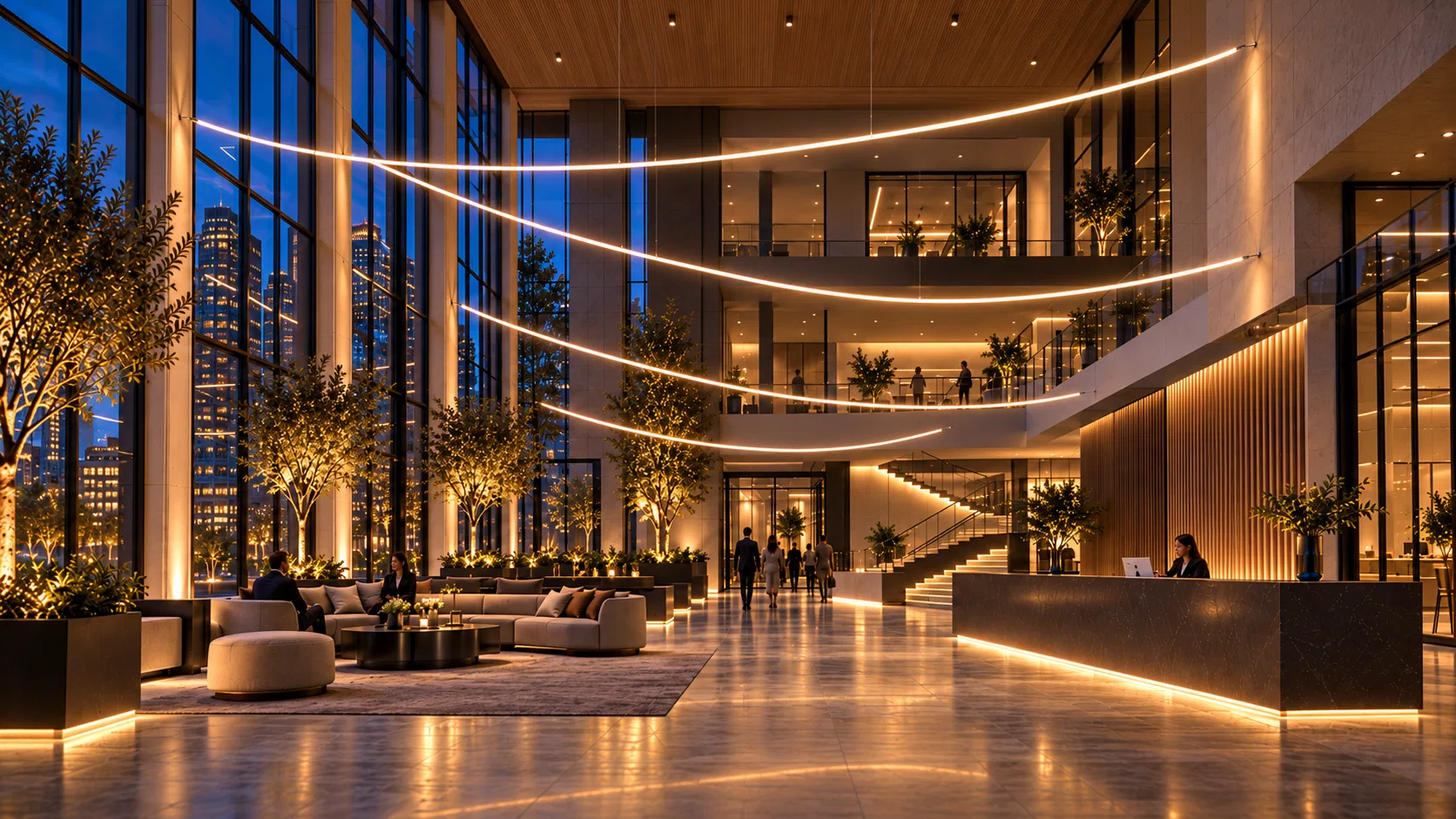

Office atriums
Sweeping light lines in high entrance halls.

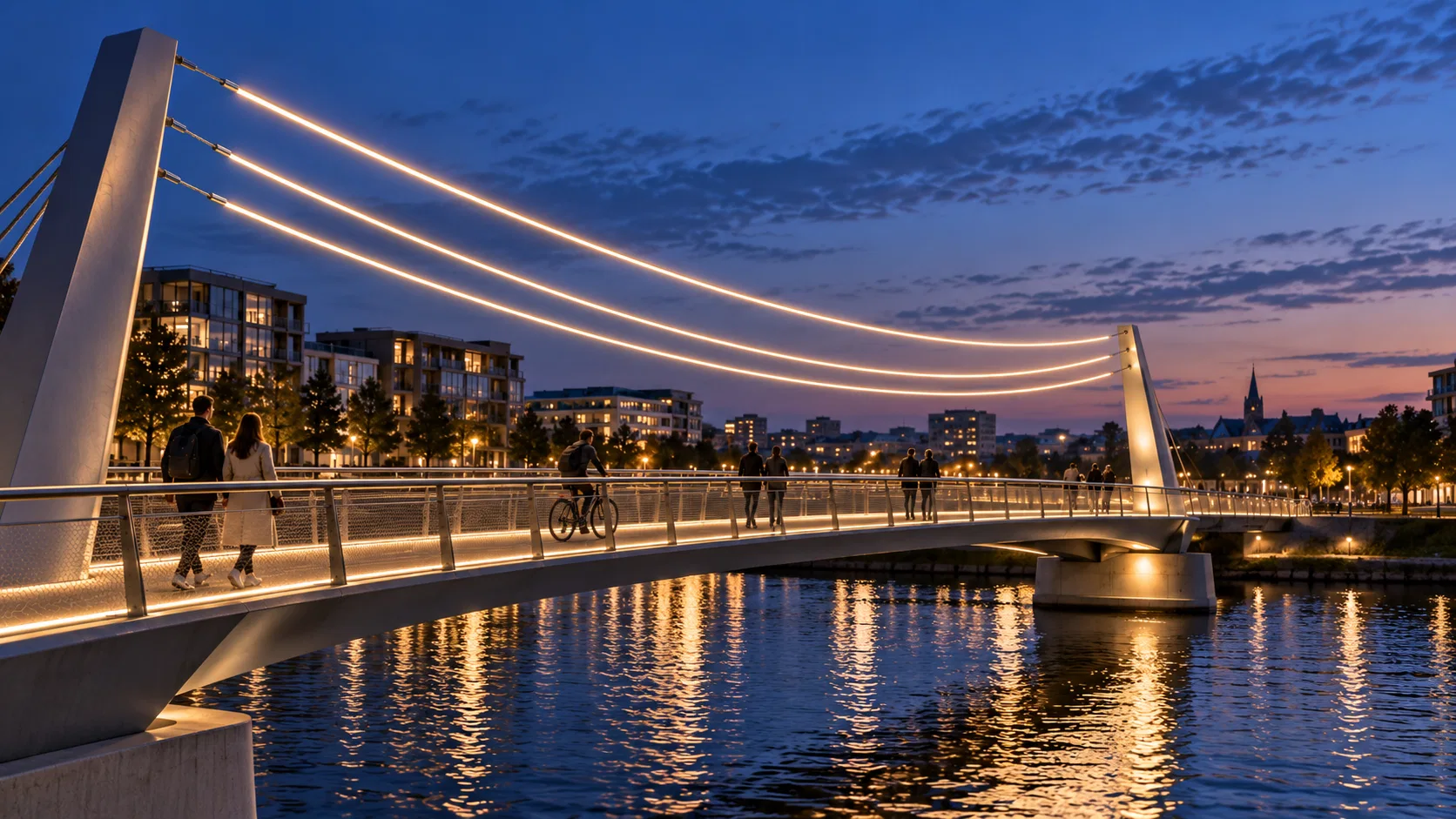

Bridges & public spaces
Suspended light between engineered support points.
Concept visualisations; actual installations require structural and electrical design.
Technical Specifications
| Parameter | Value |
|---|---|
| Supply voltage | 24 V DC |
| Rated power | 12 W/m |
| Silicone profile | 22 ± 0.5 × 30 ± 1 mm (W × H) |
| Colour temperatures | 2200 / 2700 / 3000 / 3500 / 4000 / 5700 K |
| Light output | ≥ 730 lm/m (2200–3000 K); > 800 lm/m (3500–5700 K), factory data |
| Colour rendering | CRI 80 |
| Protection | IP67 |
| Weight | 350 g/m |
| Minimum cutting increment | 83.3 mm |
| Minimum bend diameter | Ø 580 mm (factory figure) |
| Maximum one-side powered length | 10 m |
| Maximum two-side powered length | 20 m (double-ended power supply) |
| Minimum order quantity | 300 m (LEDPRO supply condition) |
Dome-shaped silicone section. Illustrative redraw based on the factory datasheet.
Light Output & Available Configurations
Standard 24 V DC • 12 W/m • cut increment approximately 83.3 mm.
| Colour temperature | Factory luminous output | LEDPRO product code |
|---|---|---|
| 2200 K | ≥ 730 lm/m | NFS2230-24C-22K-12W-83,3 |
| 2700 K | ≥ 730 lm/m | NFS2230-24C-27K-12W-83,3 |
| 3000 K | ≥ 730 lm/m | NFS2230-24C-30K-12W-83,3 |
| 3500 K | > 800 lm/m | NFS2230-24C-35K-12W-83,3 |
| 4000 K | > 800 lm/m | NFS2230-24C-40K-12W-83,3 |
| 5700 K | > 800 lm/m | NFS2230-24C-57K-12W-83,3 |
Photometric values are based on the supplied factory information. Final specifications are subject to the confirmed production version.
Power Supply & Run Length
Single-ended supply
Maximum 10 m per line
Rated load at 10 m: 120 W (12 W/m × 10 m).
Double-ended supply
Maximum 20 m per line
Rated load at 20 m: 240 W (12 W/m × 20 m).
Select drivers, injection-moulded end connections and cable lengths for the actual electrical installation. 20 m with power supplied at both ends.
Connectors & Accessories
| Image | Accessory | LEDPRO reference |
|---|---|---|

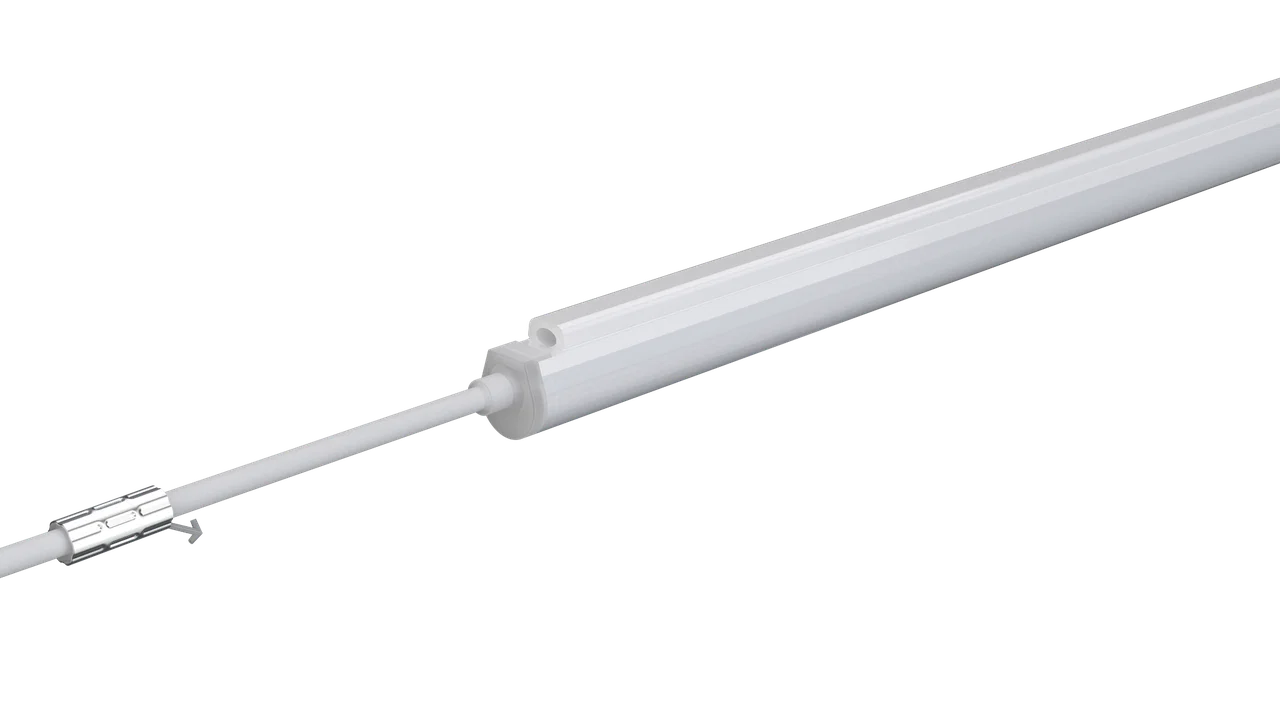

 | Injection-moulded front connector Power entry, supplied moulded to the strip | S2230-VB-SIM/FC-01/02-E |

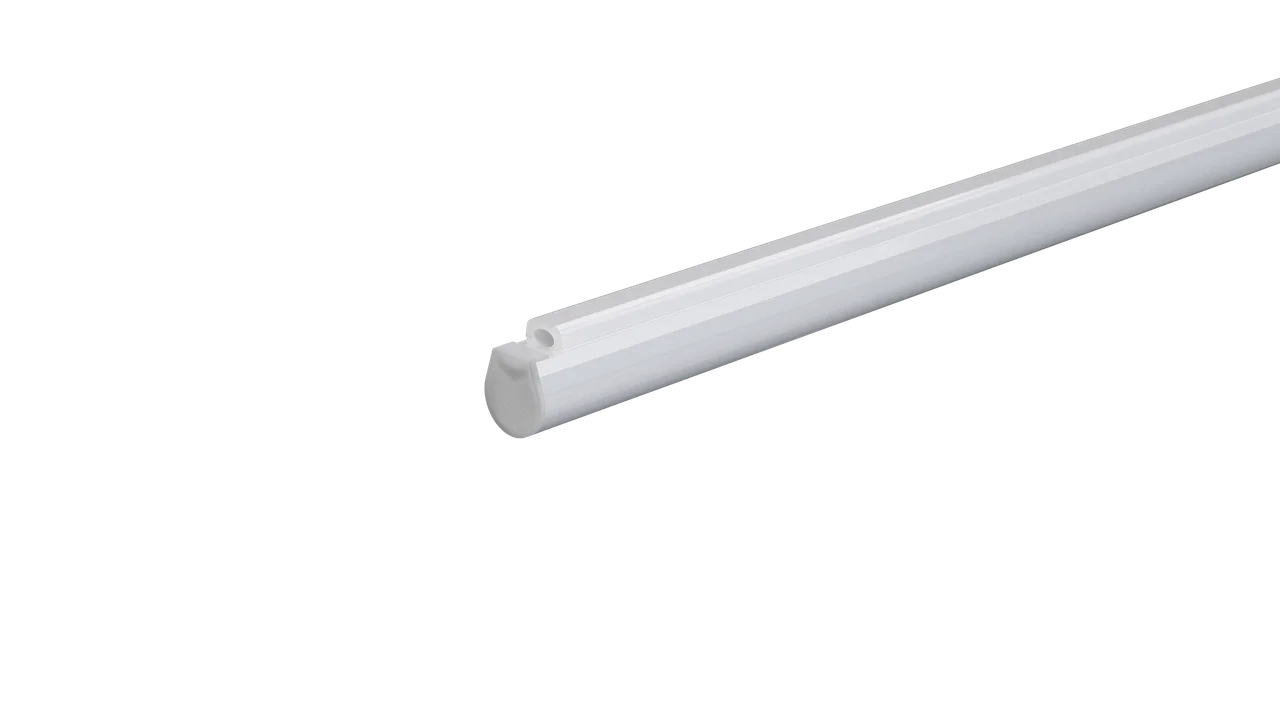

 | Injection-moulded endcap Factory-moulded termination; not a loose cap | S2230-SIM/EC |

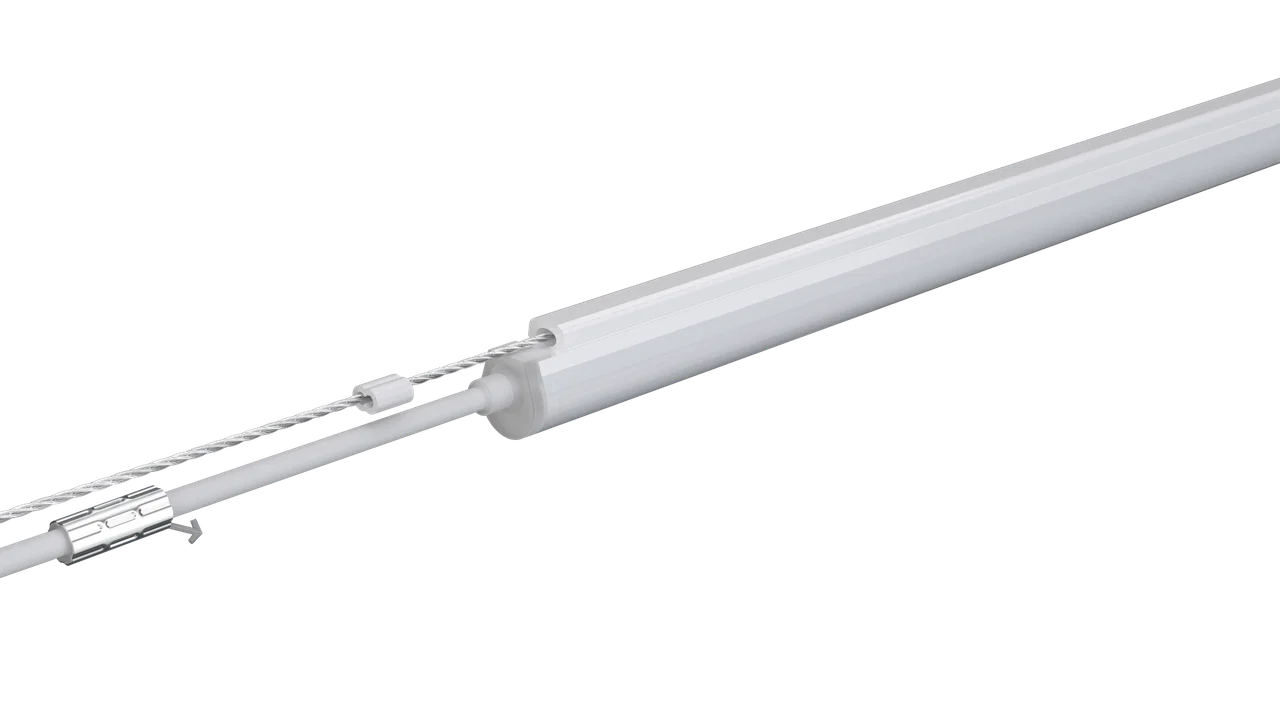

 | Stainless-steel suspension cable Cable passes through the upper channel; cable fixing set according to installation | See installation details |

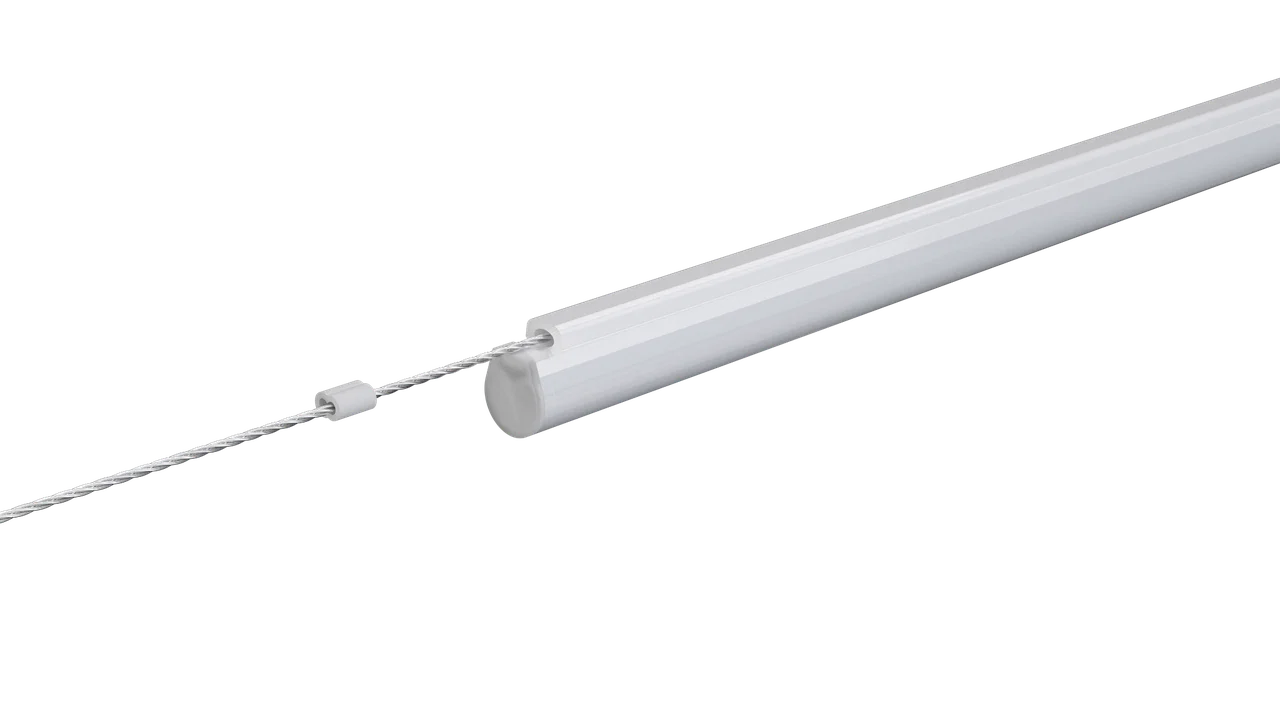

| Power connector and suspension cable Illustrative assembly | See installation details |
Select product images to view larger. Endcaps and power connectors are factory-moulded; images are illustrative.
Installation Concept
The stainless-steel suspension wire is passed through the upper channel of the S2230sus and anchored at structurally suitable points. The electrical supply cable is a separate element. The cable grippers and anchoring hardware must be sized for the proposed span, load and environment.
De roestvrijstalen spankabel wordt door het bovenste kanaal van de S2230sus gevoerd en aan geschikte constructieve bevestigingspunten verankerd. De voedingskabel is een afzonderlijk onderdeel.
Design note: Maximum individual LED line length: 20 m. Suspension force, sag, wind loading and anchorage must be verified separately, especially for outdoor applications.
Project Enquiries
Discuss length, colour temperature, mounting points and the suspension arrangement with LEDPRO.
Bespreek de gewenste lengte, lichtkleur, bevestigingspunten en ophangconstructie met LEDPRO.
Contact LEDPROMinimum order quantity: 300 m. Custom configurations by consultation.
