Neon-Flex S22
Ultra-Long 48V
Long-distance flexible linear lighting for architectural and infrastructure projects. Engineered for long runs with single-end power supply, with maximum length dependent on power rating.
Flexibele lineaire verlichting voor lange afstanden in architecturale en infrastructurele projecten. Ontwikkeld voor lange lengtes met enkelzijdige voeding, waarbij de maximale lengte afhankelijk is van het vermogensniveau.
Key advantages
Long continuous runs
Maximum configured lengths up to 200 metres with single-side feeding at the lowest power rating.
Lange lichtlijnen — Geconfigureerde lengtes tot 200 meter bij enkelzijdige voeding en het laagste vermogen.
Fewer feed points
Longer supply sections can reduce the number of required feed locations and simplify project execution.
Minder voedingspunten — Langere voedingssecties kunnen het aantal aansluitpunten beperken en de installatie vereenvoudigen.
Outdoor-ready design
IP68 flexible linear lighting suitable for demanding architectural and infrastructure applications.
Geschikt voor buitengebruik — IP68 lineaire verlichting voor veeleisende architecturale en infrastructurele toepassingen.
Dimensions & bend radius

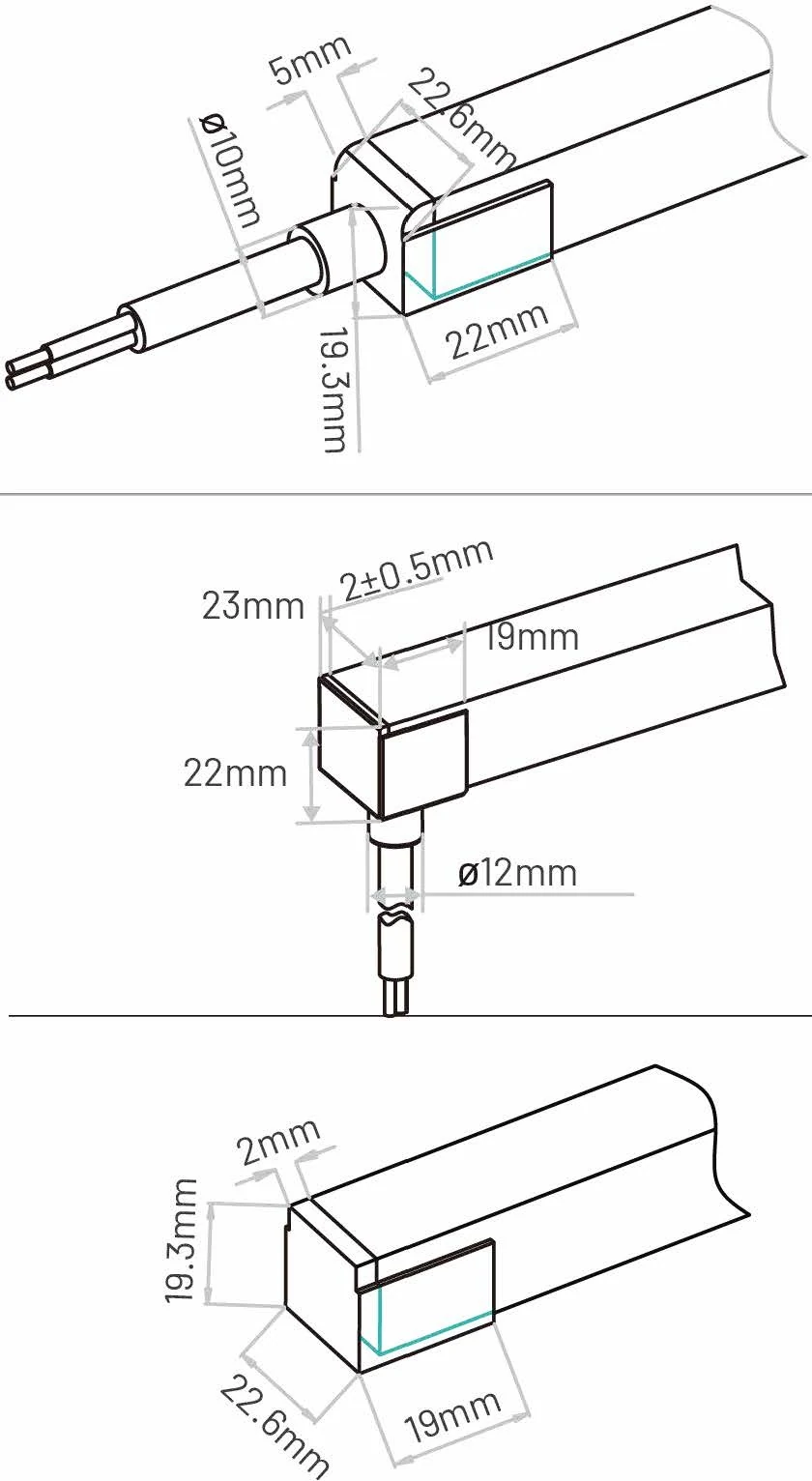

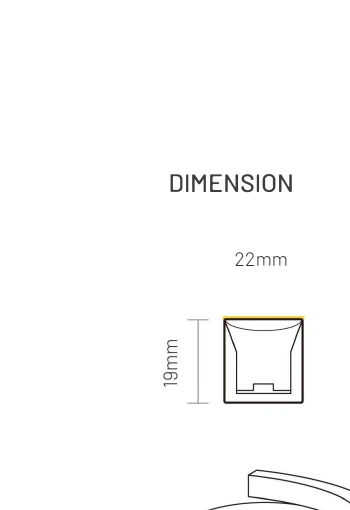

22 × 19 mm cross-section, connection dimensions and minimum bending diameter. Click a drawing to enlarge.
Tip: click the images to view them larger.
Important dimensions
Technical specifications
| LEDPRO product series | Neon-Flex S22 / NF-S22 |
|---|---|
| Supply voltage | 48 V DC |
| Rated power | 2 / 6 / 9 / 12 W/m |
| Colour temperatures | 2700 / 3000 / 4000 / 5700 K |
| Colour rendering | CRI >80 |
| Ingress protection | IP68 |
| Minimum cutting length | 125 mm |
| Light body dimensions | 22 × 19 mm |
| Weight | 522 g/m |
| Ambient operating temperature | −40 to +55 °C |
| Storage temperature | −40 to +50 °C |
| Maximum mounting surface temperature | 85 °C |
| Minimum bend radius | Ø 300 mm |
| Average beam angle (50%) | 111.7° |
Maximum single-end feed length
| Rated power | Maximum run length | Maximum connected load |
|---|---|---|
| 2 W/m | 200 m | 400 W |
| 6 W/m | 140 m | 840 W |
| 9 W/m | 120 m | 1,080 W |
| 12 W/m | 100 m | 1,200 W |
Maximum connected load is calculated as rated W/m × maximum run length. The run may consist of multiple interconnected sections; it is not restricted to 20 m sections. Confirm driver capacity, connections, cable sizing and voltage drop for each installation.
Light output by power and colour temperature
| Power (W/m) | 2700 K (lm/m) | 3000 K (lm/m) | 4000 K (lm/m) | 5700 K (lm/m) | Max. feed |
|---|---|---|---|---|---|
| 2 | >120 | >130 | >140 | >140 | 200 m |
| 6 | >340 | >360 | >360 | >360 | 140 m |
| 9 | >520 | >540 | >550 | >550 | 120 m |
| 12 | >700 | >720 | >740 | >740 | 100 m |
Available configurations
| Power | Example LEDPRO code | Example description |
|---|---|---|
| 2 W/m | NF-S22-VB-48CC-30K-WM-80-2W-125 | 3000 K · CRI 80 · 125 mm cut interval |
| 6 W/m | NF-S22-VB-48CC-30K-WM-80-6W-125 | 3000 K · CRI 80 · 125 mm cut interval |
| 9 W/m | NF-S22-VB-48CC-30K-WM-80-9W-125 | 3000 K · CRI 80 · 125 mm cut interval |
| 12 W/m | NF-S22-VB-48CC-30K-WM-80-12W-125 | 3000 K · CRI 80 · 125 mm cut interval |
Base format: NF-S22-VB-48CC-[CCT]-WM-80-[POWER]-125
Accessories & mounting profiles
Connection options and factory-fitted finishes are presented with their corresponding product images. The power-feed connectors and end cap are moulded onto the Neon-Flex at the factory; they are not supplied as loose fittings.
| Image | Accessory / profile | Description | Reference |
|---|---|---|---|

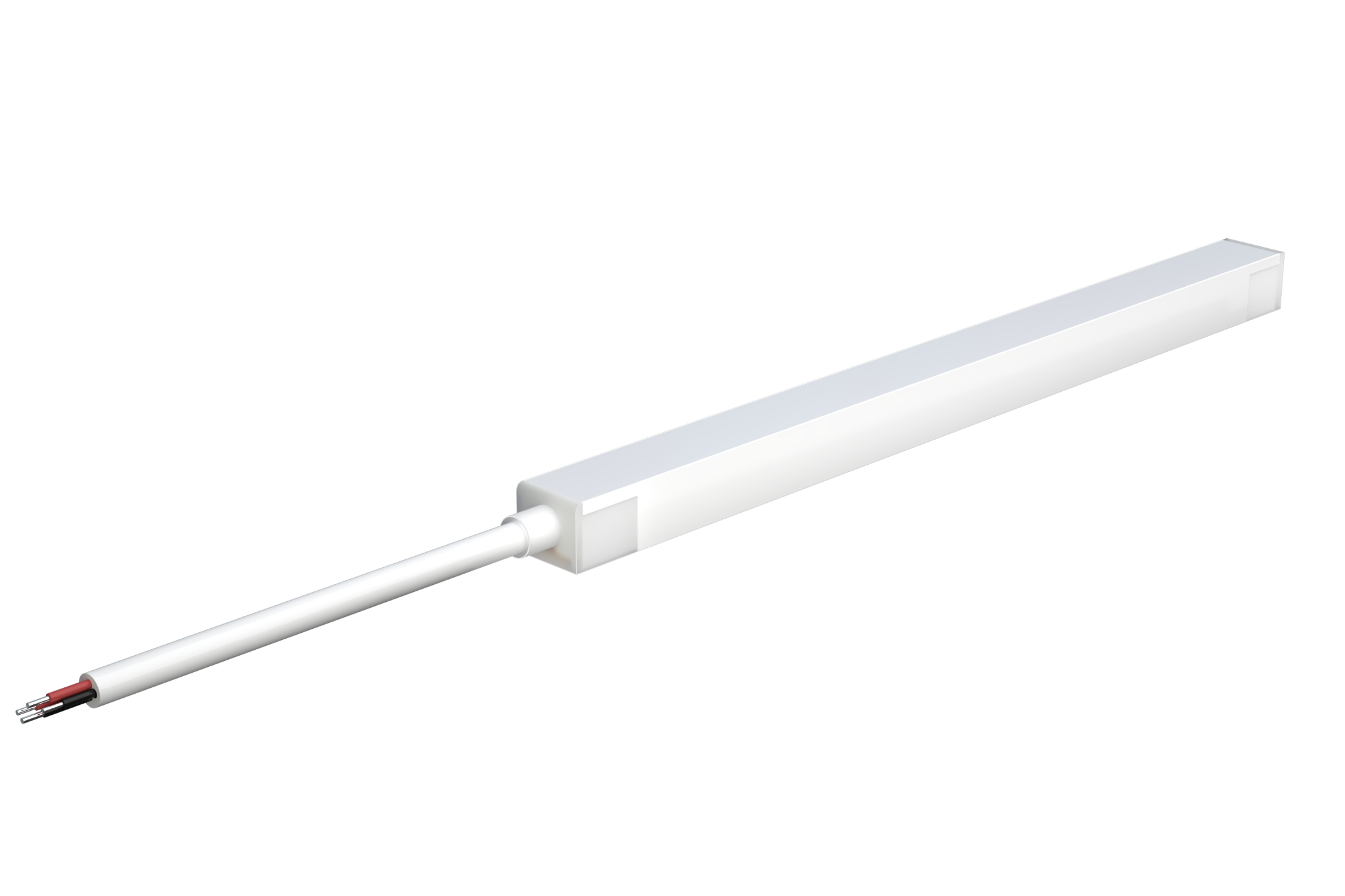

 | Power cable – end feed | IP68 silicone injection-moulded front connector with end cable exit. | NF-S22-VB-SIM/FC-01/02-E |

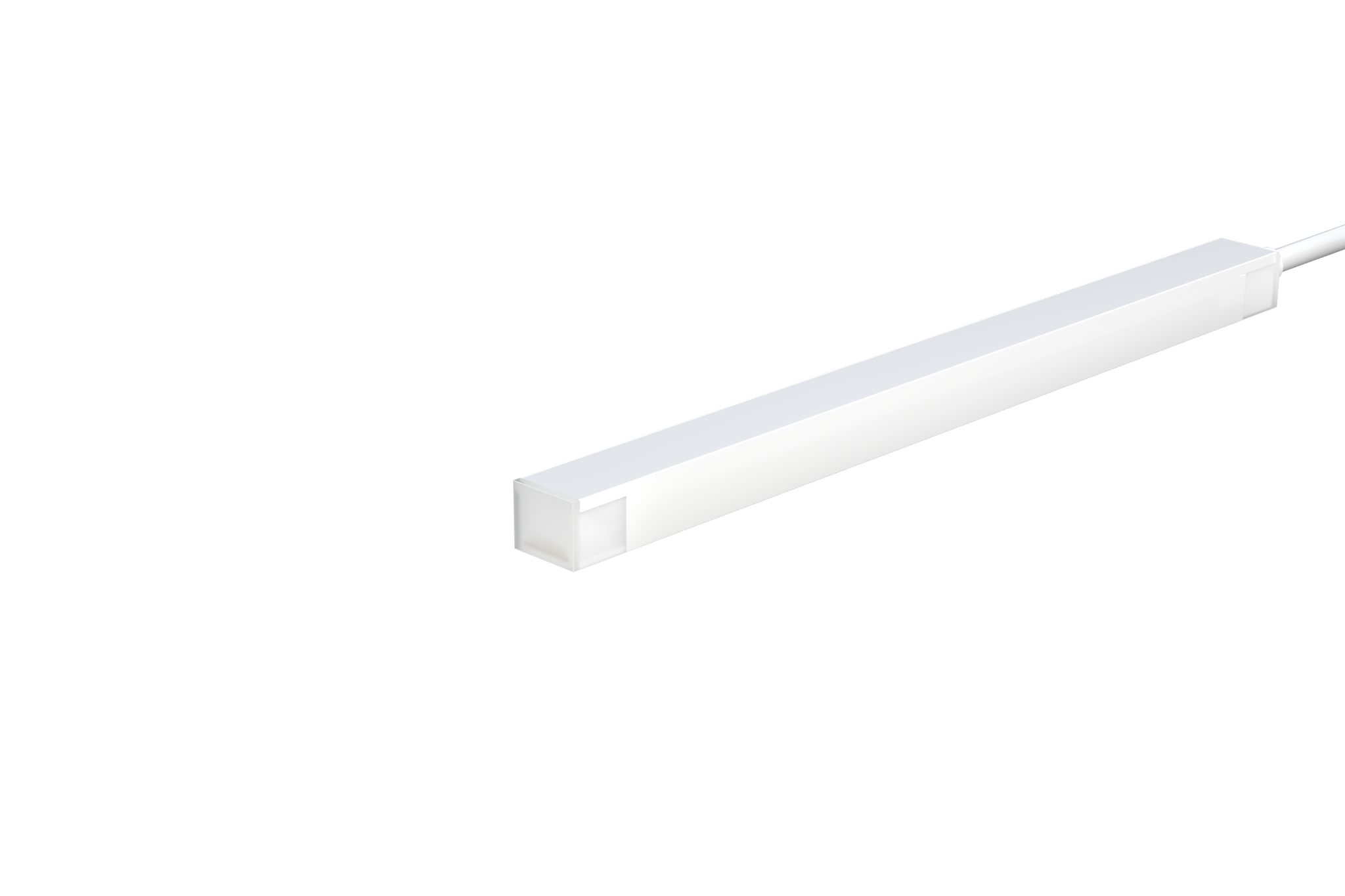

 | Power cable – bottom feed | IP68 silicone injection-moulded front connector with bottom cable exit. | NF-S22-VB-SIM/FC-01/02-B |
 | Factory-moulded end cap | IP68 silicone end cap, permanently factory-moulded onto the end of the S22 line. Not supplied as a loose fitting. | NF-S22-SIM/EC |
 | Male & female connector | Optional plug-and-play cable junction for Ultra-long 48V applications. | M16 connector set |

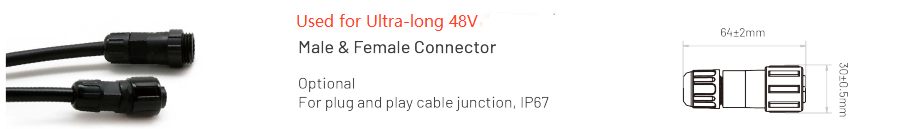

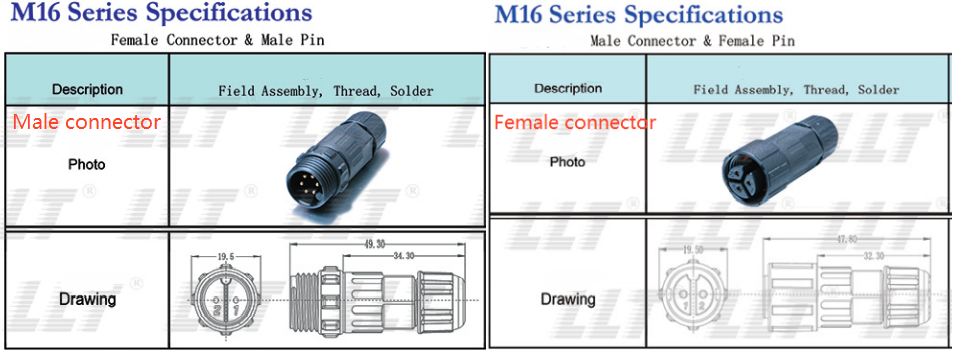

 | M16 connector specifications | Male and female connector specification drawing. | M16 series |
 | Serrated aluminium profile | Serrated aluminium mounting profile, 26.6 × 26.5 mm; standard lengths 20, 500, 1000 and 2000 mm. | NF-S22-Serrated Aluminum Profile |
 | Flange serrated aluminium profile | Profile with flange detail for broader support and a cleaner finish around the light opening. | NF-S22-Flange Serrated Aluminum Profile |
 | Anti-wicking ferrule | Located approximately 115 mm (±5 mm) from the connector. Helps prevent water ingress through cable conductors. Do not remove. | Anti-wicking ferrule |
Note: the end cap and power-feed connectors are factory-moulded terminations, not loose plug-in components. The optional M16 plug-and-play connector is a separate accessory.
Discuss your project with LEDPRO
We can advise on power rating, driver distribution, connector configuration, profile selection and appropriate installation lengths.
