Crystal Flex S20-48V

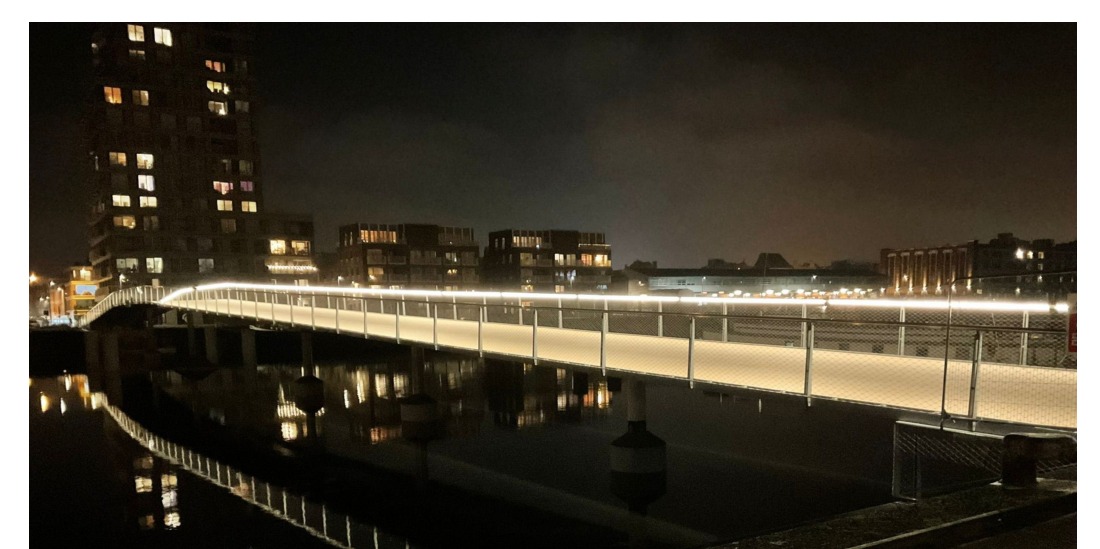

Transparent, flexible 48V linear LED lighting for long continuous architectural and infrastructure installations. Multiple light outputs, silicone protection and a 20 × 10 mm profile.
Transparante, flexibele 48V LED-verlichting voor lange doorlopende lichtlijnen in architectuur en infrastructuur. Leverbaar in meerdere vermogens, met siliconen bescherming en een profiel van 20 × 10 mm.
Key Advantages
Long continuous runs
Single-end powering up to 200 metres in the 2 W/m configuration, subject to installation design.
Lange doorlopende lichtlijnen. Voeding vanaf één zijde tot 200 meter bij 2 W/m, afhankelijk van het installatieontwerp.
Transparent flat profile
A compact 20 × 10 mm silicone construction suitable for visible linear effects and recessed applications.
Transparant, vlak profiel. Compacte siliconen uitvoering van 20 × 10 mm voor zichtbare lichtlijnen en inbouwtoepassingen.
Flexible mounting options
Compatible with factory-moulded terminations and dedicated suspension or stainless-steel mounting accessories.
Flexibele montage. Met fabrieksmatig aangegoten aansluitingen en optionele ophang- en roestvaststalen montageaccessoires.
Product Overview
Technical Specifications
| Parameter | Value |
|---|---|
| Working ambient temperature | −40 to +55 °C |
| Storage temperature | −40 to +60 °C |
| Maximum mounting-surface temperature | 85 °C |
| Nominal colour temperatures | 2200 / 2700 / 3000 / 3500 / 4000 / 5700 K |
| Cut increment | 250 mm (2 / 5 / 9 W/m); 166.7 mm (12 W/m) |
| Product family reference | S20-48V (LEDPRO) |

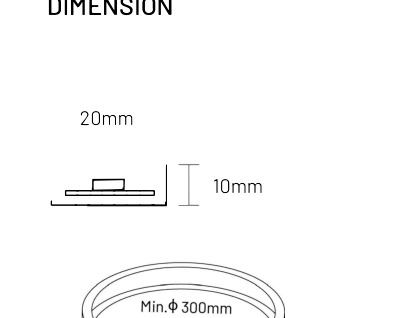

Dimensions and Bend Radius

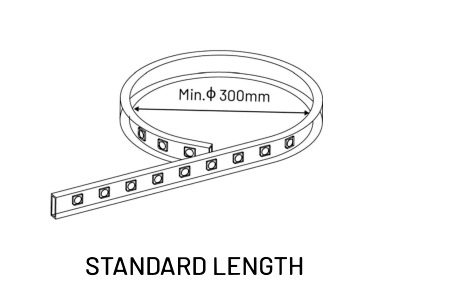

Bend only in the designated bending plane and never below the specified minimum diameter.
Maximum Single-End Feed Length and Connected Load
| Power | Maximum documented feed length | Calculated load at maximum length |
|---|---|---|
| 2 W/m | 200 m | 400 W |
| 5 W/m | 180 m | 900 W |
| 9 W/m | 120 m | 1,080 W |
| 12 W/m | 100 m | 1,200 W |
The wattages shown are arithmetic totals (metres × W/m), not a driver selection. They do not imply that lines must be divided into equal 20 m sections. Actual connection design, cable size, voltage drop and power supply capacity must be checked per project.
Light Output
| Power | 2200K | 2700K | 3000K | 3500K | 4000K | 5700K |
|---|---|---|---|---|---|---|
| 2 W/m | >170 | >170 | >170 | >180 | >180 | >180 |
| 5 W/m | >400 | >400 | >400 | >420 | >420 | >420 |
| 9 W/m | >670 | >670 | >670 | >700 | >700 | >700 |
| 12 W/m | >910 | >910 | >910 | >950 | >950 | >950 |
Minimum luminous flux in lm/m, as specified in the factory data; 2200–5700 K variants. Light output differs by selected CCT and power.

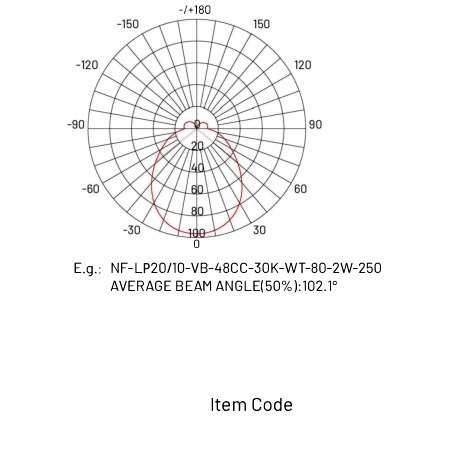

Photometric Curve
Available Configurations
| LEDPRO product family | Power | Available CCTs | Cut increment |
|---|---|---|---|
| Crystal Flex S20-48V | 2 W/m | 2200 / 2700 / 3000 / 3500 / 4000 / 5700 K | 250 mm |
| Crystal Flex S20-48V | 5 W/m | 2200 / 2700 / 3000 / 3500 / 4000 / 5700 K | 250 mm |
| Crystal Flex S20-48V | 9 W/m | 2200 / 2700 / 3000 / 3500 / 4000 / 5700 K | 250 mm |
| Crystal Flex S20-48V | 12 W/m | 2200 / 2700 / 3000 / 3500 / 4000 / 5700 K | 166.7 mm |
Full order-code structure is not reproduced here because only the original manufacturer nomenclature was provided; LEDPRO-specific order codes should be confirmed before publishing.
Accessories & Mounting Profiles
| Image | Accessory / profile | Description | Reference |
|---|---|---|---|

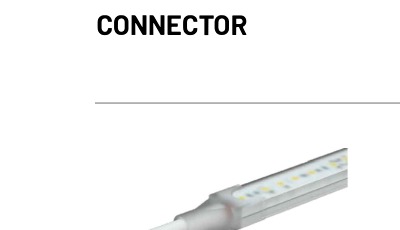

 | Factory-moulded End Feed | IP68 injection-moulded power entry at the end of the strip | Factory finish |

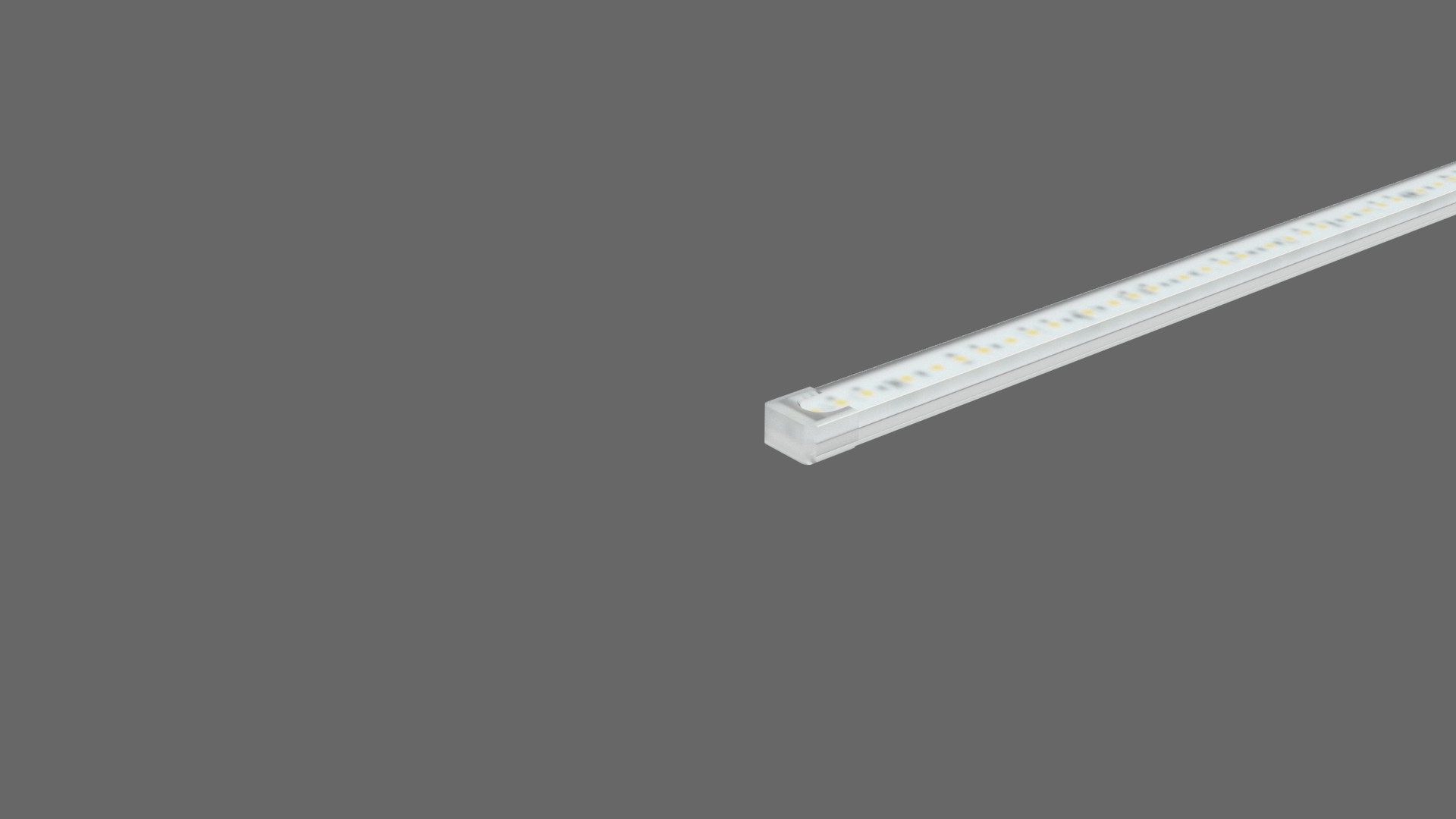

 | Factory-moulded Endcap | Pre-installed termination; not a loose cap | Factory finish |

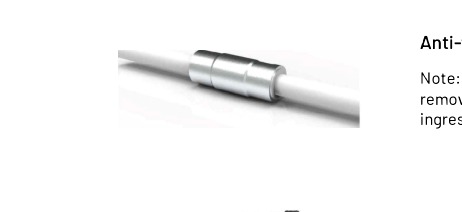

 | Anti-wicking Ferrule | Helps prevent ingress along cable conductors; must remain fitted | Integrated protection |

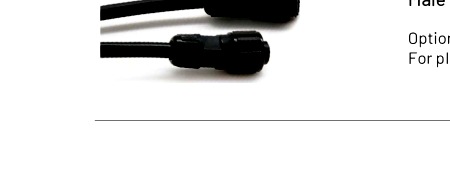

 | Male / Female Connector | Optional plug-and-play power junction, subject to specified connector IP rating | Optional |
 | Suspension Kit | Wire-rope hanging and adjustable mounting arrangement | S20-48V-S/KT* |

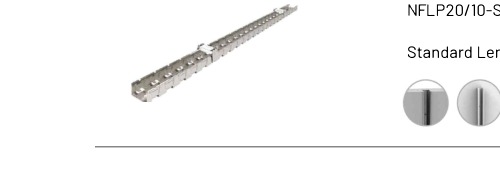

 | Stainless Steel Mounting Profile | Corrosion-resistant mounting profile; nominal length 500 mm | S20-48V-S/PL-500MM-SSL* |
Factory-moulded connectors and endcaps form part of the finished strip and are not separate loose components. *Accessory code is adapted from the source naming and requires factory confirmation before ordering.
